SG-3M Silver-Brazed Tungsten Carbide Burr with 9.6mm Cut Diameter and Customizable Cut Geometry
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001：2008 |
| Model Number | SG-3M |
| Minimum Order Quantity | 50 pcs |
| Price | 1-5usd/pc |
| Packaging Details | carton43*25*22.5cm |
| Delivery Time | 15-30 days |
| Payment Terms | T/T,L/C,Western Union |
| Supply Ability | 70000pcs/month |
Product Details
| Model | SG-3M | Cut Dia | 9.6mm |
|---|---|---|---|
| Cut Length | 19mm | Shank Dia | 6mm |
| Overall | 64mm | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | Coating | No |
| Highlight | Silver-Brazed Carbide Burr,Customizable Cut Geometry Rotary Burr,9.6mm Cut Diameter Tungsten Carbide Burr |
||
Product Description

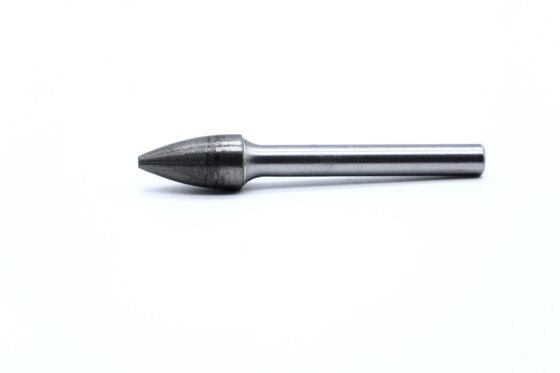

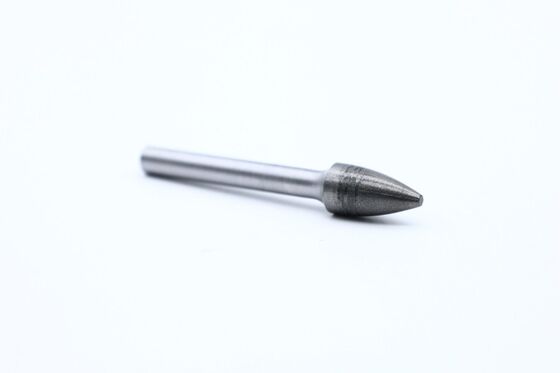

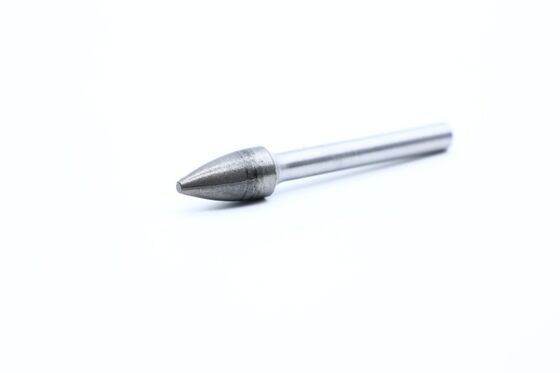

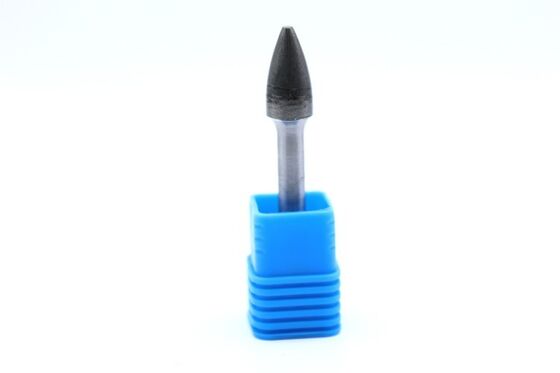

SG-3M Silver-Brazed Unfinished Burr – Customizable Cut Geometry
The SG-3M is an unfinished carbide burr with silver-brazed construction. It consists of a high-quality carbide tip securely brazed onto a steel shank using silver solder. This semi-finished product allows you to customize the cut geometry, tooth pattern, and coating according to your specific application requirements.
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type |
| SG-3M | 9.6 | 19 | 6 | 64 | Silver braze |
The silver-brazed joint provides strong bonding between the carbide tip and the shank, ensuring reliable performance during grinding and finishing. The blank comes pre-shaped to the SG series profile, saving you time in the initial forming process while giving you full control over the final tool design. It is ideal for tool manufacturers, resharpening shops, or specialized users who prefer to create their own burr configurations.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
