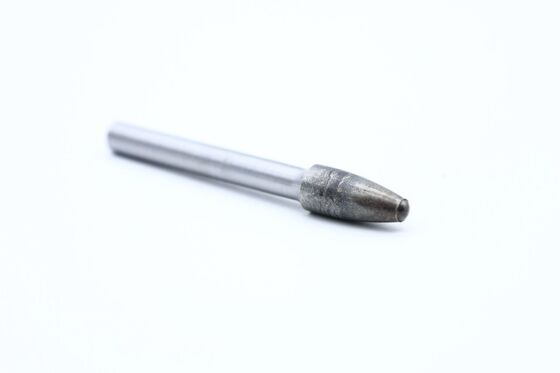

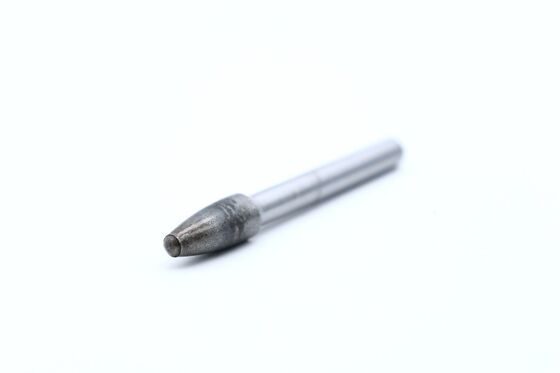

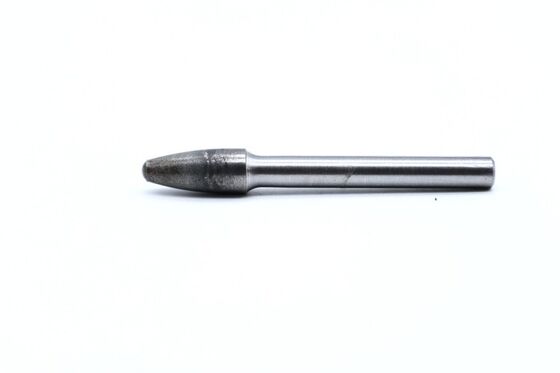

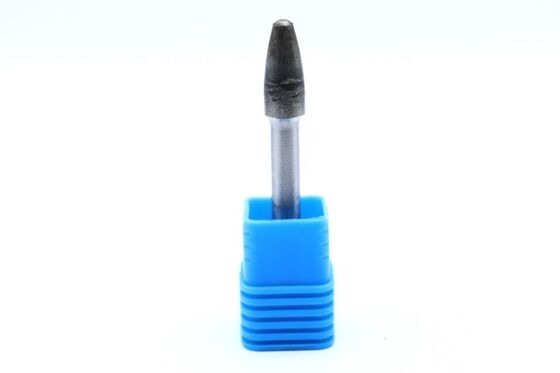

SF-2M Radius Tree Shape Carbide Rotary Burr Blank with 8mm Cut Diameter and YG8 Grade for Custom Grinding
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SF-2M |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-20USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SF-2M | Cut Dia | 8mm |
|---|---|---|---|
| Cut Length | 19mm | Shank | 6mm |
| Overall | 50mm | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Highlight | Radius Tree Shape Carbide Rotary Burr,8mm Cut Diameter Carbide Burr Blank,YG8 Grade Tungsten Carbide Burr |
||
Product Description
SF-2M Radius Tree Semi‑finished Carbide Rotary Burr for Custom Cut Grinding and Regrinding
The SF-2M carbide rotary burr semi‑finished product is a radius tree‑shaped blank without pre‑ground teeth. Made from wear‑resistant carbide, it features a dense and uniform structure, providing a reliable foundation for subsequent tooth grinding.
| Technical Parameters | |||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type |
| SF-2M | 8 | 19 | 6 | 64 | Silver braze |
This blank can be used by tool manufacturers for custom tooth profile development, as well as for regrinding worn rotary burrs to extend their service life. The radius tree shape is suitable for working on multi‑step surfaces, deep grooves, and complex cavities. It is compatible with standard grinding equipment.
Widely used in custom tooth development, small‑batch tool prototyping, tool regrinding services, and training applications, this is a highly flexible and practical carbide burr base material.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
