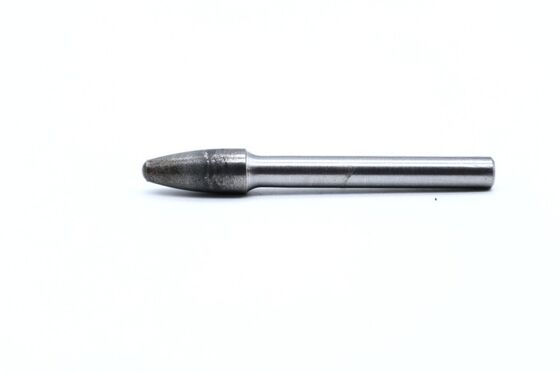

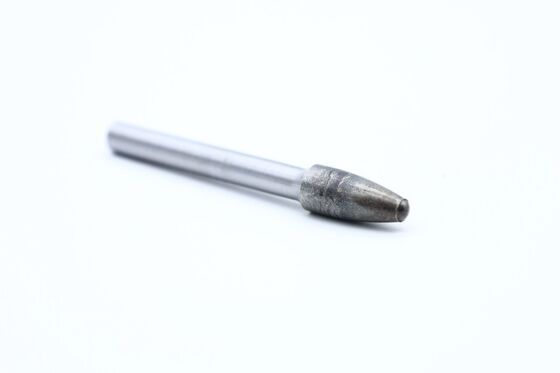

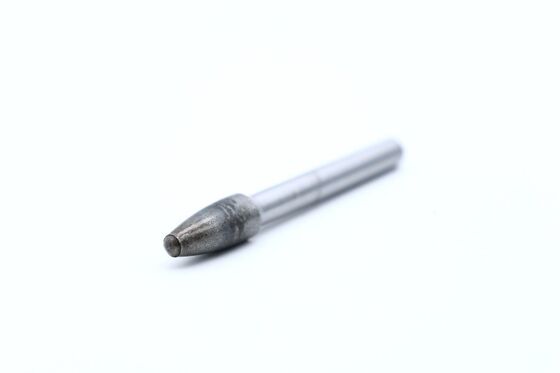

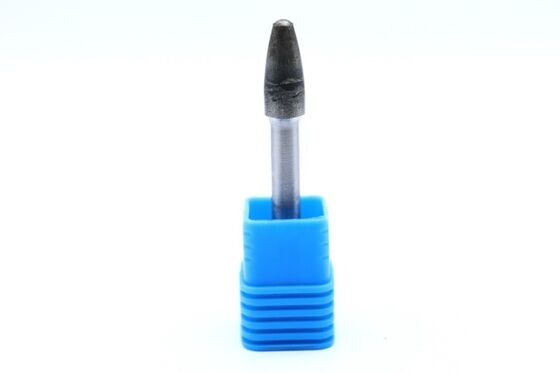

SF-5M F12.725 Virgin Tungsten Carbide Preform with 12.7mm Cut Diameter and Silver Brazed for Burr Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001：2008 |
| Model Number | SF-5M |
| Minimum Order Quantity | 50 pcs |
| Price | 1-5usd/pc |
| Packaging Details | carton43*25*22.5cm |
| Delivery Time | 15-30 days |
| Payment Terms | T/T,L/C,Western Union |
| Supply Ability | 70000pcs/month |
Product Details
| Model | SF-5M | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 25mm | Shank Dia | 6mm |
| Overall | 70mm | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | Coating | No |
| Highlight | Virgin Tungsten Carbide Carbide Burr Preform,12.7mm Cut Diameter Semi-Finished Carbide Burr,Silver Brazed Tungsten Carbide Burr Blank |
||
Product Description
SF-5M F12.725 Virgin Carbide Preform – Silver Brazed, Semi-Finished for Burr Production
The SF-5M F12.725 is a semi-finished carbide preform built for those who value both quality and flexibility in burr manufacturing. It starts with virgin-grade tungsten carbide—100% fresh material with no recycled content—ensuring consistent density, hardness, and machinability across every piece.
The silver brazing process used to join the carbide tip to the steel shank creates a bond that is both thermally resistant and mechanically robust. This means the preform holds up reliably during subsequent grinding operations and throughout the finished tool's service life.
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type |
| SF-5M | 12.7mm | 25 | 6 | 70 | Silver braze |
Shaped to the SF series flame profile, this blank eliminates the need for rough forming, letting you go straight to fine-tuning the cutting geometry, tooth configuration, or surface treatment. Whether your focus is on weld removal, edge blending, or general material shaping, this preform gives you a solid foundation with room to customize.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
