SK-3M Single Cut Carbide Rotary Burr for Hardened Steel with Ra0.4μm Surface Roughness and ≤0.15mm Runout Tolerance
| Place of Origin | CHINA |
|---|---|
| Brand Name | CBT |
| Certification | ISO9001-2008 |
| Model Number | SK-3M SC |
| Minimum Order Quantity | 100pcs |
| Price | 1-10usd |
| Packaging Details | red case, single plastic tube |
| Delivery Time | 15-30days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 70000pcs/month |
Product Details
| Model | SK-3M SC | Cut Dia | 9.6mm |
|---|---|---|---|
| Cut Length | 4.7mm | Shank Dia | 6mm |
| Overall | 52mm | Cut | Single Cut |
| Type | Silver Braze | Material | Tungsten Carbide |
| Coating | No | Workpiece | Steel, Cast Iron |
| Grade | YG7 | ||
| Highlight | Ra0.4μm Carbide Rotary Burr,Hardened Steel Rotary Burr,≤0.15mm Runout Carbide Burr |
||
Product Description

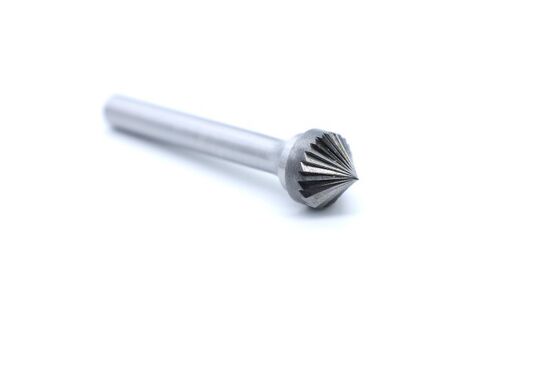

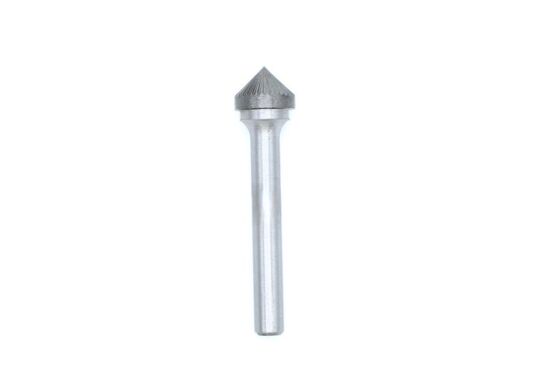

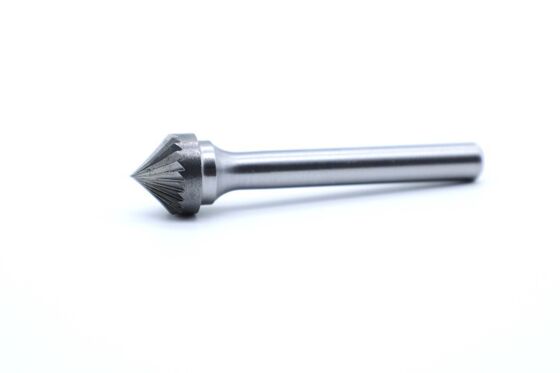

SK-3M Single Cut Carbide Rotary Burr for Hardened Steel with Ra0.4μm Surface Roughness and ≤0.15mm Runout Tolerance
The SK-3M single cut carbide rotary burr is specifically designed for the finishing of hardened steels. Its single-cut structure enables stable, low-vibration cutting. Through precision grinding, this tool can control the machined surface roughness to within Ra0.4μm.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SK-3M SC | 9.6 | 4.7 | 6 | 52 | Silver braze | Single |
The tool's radial runout tolerance is strictly controlled at ≤0.15mm, ensuring excellent dynamic balance during high-speed rotation. This high-precision characteristic makes it particularly suitable for final finishing operations such as mold cavities, precision mechanical components, and applications with extremely high demands for surface quality and dimensional consistency.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
