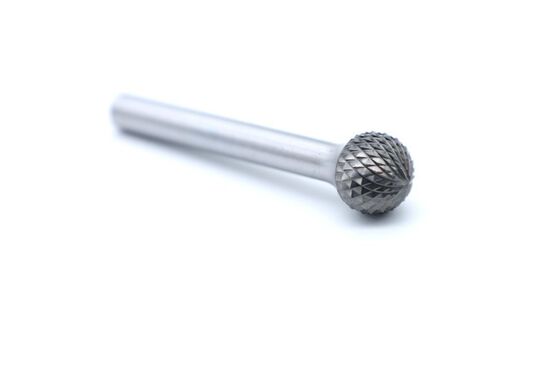

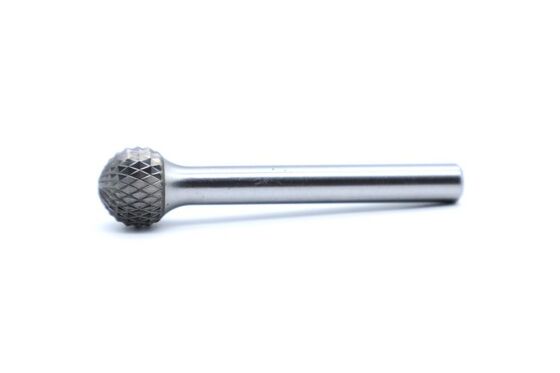

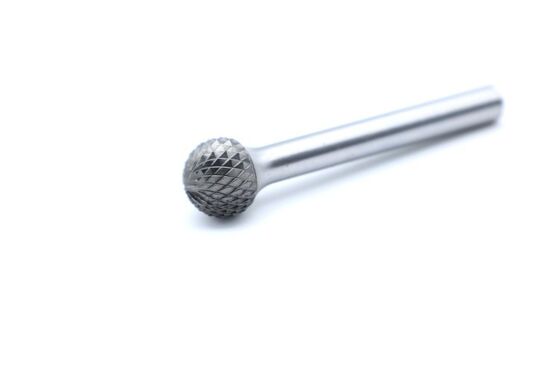

SD-3M Diamond Cut Carbide Burr - For Controlled Cutting of Stainless Steel and Inconel
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001：2008 |
| Model Number | SD-3M DM |
| Minimum Order Quantity | 100 |
| Price | 1-5usd/pc |
| Packaging Details | carton43*25*22.5cm |
| Delivery Time | 15-30 days |
| Payment Terms | T/T,L/C,Western Union |
| Supply Ability | 70000pcs/month |
Product Details
| Model | SD-3M DM | Cut Dia | 9.6mm |
|---|---|---|---|
| Cut Length | 8mm | Shank Dia | 6mm |
| Overall | 53mm | Cut | Diamond |
| Type | Silver Braze | Material | Tungsten Carbide |
| Coating | No | Workpiece | Steel, Cast Iron |
| Highlight | aerospace Titanium alloy rotary burr,professional Carbide rotary burr,carbide burr tool for aerospace |
||
Product Description
SD-3M Diamond Cut Carbide Burr - For Controlled Cutting of Stainless Steel and Inconel
The SD-3M Diamond Cut Carbide Burr is designed for the controlled cutting of stainless steel and superalloys like Inconel. Its diamond-interlocking tooth pattern actively creates microscopic chip-breaking points during the cutting process, effectively fragmenting tough, continuous chips into short, regular segments. This fundamentally solves core challenges such as chips tangling around the tool, scoring precision workpiece surfaces, and poor chip evacuation in deep cavity machining.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SD-3M DM | 9.6 | 8 | 6 | 53 | Silver braze | Diamond |
This active chip control significantly enhances safety and continuity in automated production lines, enclosed machine tools, and applications with stringent requirements for part cleanliness. The tool provides a professional solution for achieving efficient, high-quality machining of high-alloy materials while minimizing subsequent cleaning and manual handling steps.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
