SF-5 Double Cut Extended Shank Burr Deep Hole And Pipe Interior Processing
| Place of Origin | CHINA |
|---|---|
| Brand Name | CBT |
| Certification | ISO9001:2008 |
| Model Number | SF-5ML6 DC |
| Minimum Order Quantity | 100pcs |
| Price | 1-10usd |
| Packaging Details | single blue/red tube, red case, carton |
| Delivery Time | 15-30days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 70000pcs/month |
Product Details
| Model | SF-5ML DC | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 25mm | Shank Dia | 6mm |
| Overall | 175mm | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | Coating | No |
| Highlight | double cut tungsten carbide burr,deep hole processing carbide burr,double cut Long Shank Carbide Burrs |
||
Product Description

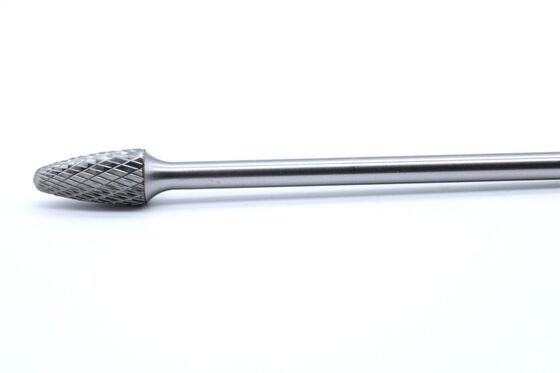

SF-5 Double Cut Extended Shank Burr - Deep Hole and Pipe Interior Processing
The SF-5ML6 Double Cut Extended Shank Burr is specifically designed for deep hole and pipeline interior processing. Its extended shank can reach into internal areas inaccessible to conventional tools. The double-cut geometry provides high-efficiency material removal, while its cross-cut design effectively disperses cutting forces, significantly suppressing tool chatter that is prone to occur during long overhang machining, ensuring cutting stability and controllability in deep operations.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SF-5ML6 DC | 12.7 | 25 | 6 | 175 | silver braze | double |
This tool is particularly suitable for hydraulic cylinder liner wall polishing, deep-hole drilling finishing with high aspect ratios, pipeline internal weld seam cleaning, and roughing/finishing of complex mold deep cavities. The optimized chip flute guides chips to evacuate smoothly, preventing accumulation inside deep holes, thereby ensuring continuous and efficient machining operations. It is a key specialized tool for handling internal spaces in maintenance, manufacturing, and repair fields.

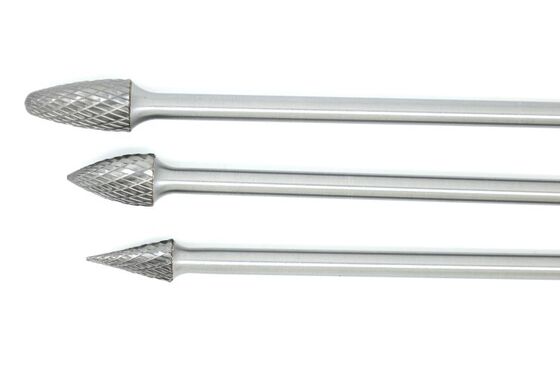

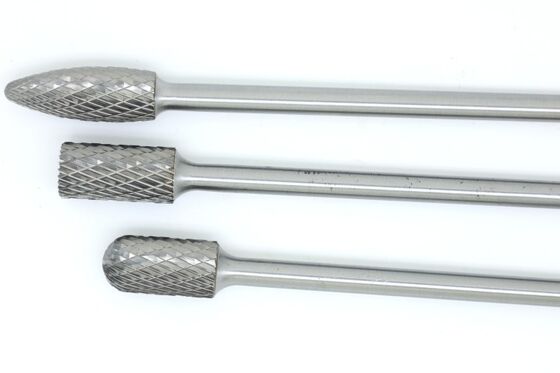

Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
