SM-4M High Quality Carbide burr- Gradual Depth Contour Machining
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001：2008 |
| Model Number | SM - 4M DC |
| Minimum Order Quantity | 50 PCS |
| Price | 1-10usd/pc |
| Packaging Details | carton43*25*22.5cm |
| Delivery Time | 15-30 days |
| Payment Terms | T/T,L/C,Western Union |
| Supply Ability | 70000pcs/month |
Product Details
| Model | SM-4M DC | Cut Dia | 9.6mm |
|---|---|---|---|
| Cut Length | 16mm | Shannk Dia | 6mm |
| Overall | 61mm | Cut | Double Cut |
| Type | Silver Braze | Coating | No |
| Grade | YG7 | Workpeice | Steel, Cast Iron |
| Material | Tungsten Carbide | ||
| Highlight | Carbide Rotary Burrs Long Term,Carbide Rotary Burrs industrial,industrial tungsten burr bits |
||
Product Description

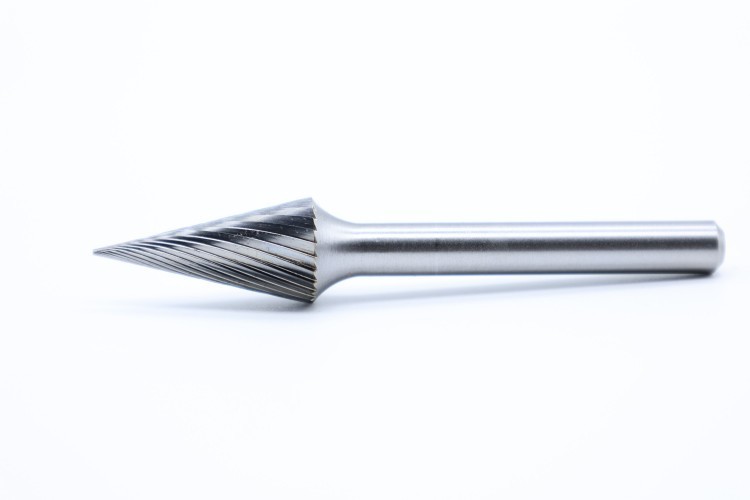

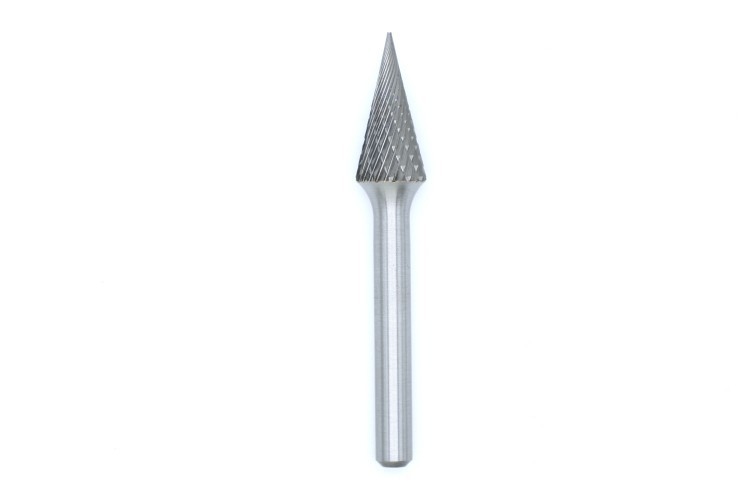

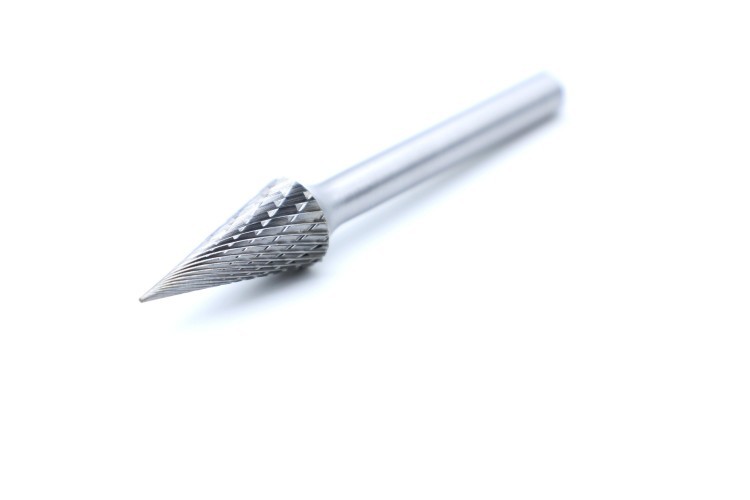

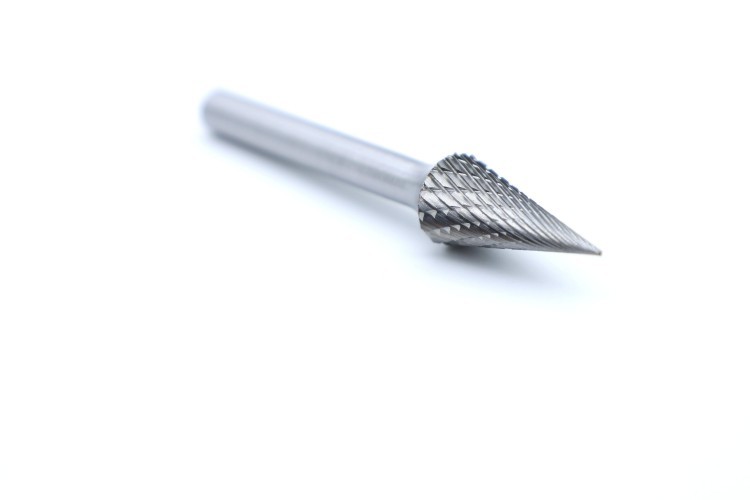

SM-4M High Quality Carbide Burr - Gradual Depth Contour Machining
The SM-4m High Quality Carbide Burr is designed for gradual depth contour machining. Its geometry and cutting edges allow for controlled material removal in multi-level contours, slopes, and variable-depth cavities. It can be used in mold and precision component manufacturing where consistent surface quality is required. The carbide substrate and coating provide impact resistance and stability during use, supporting both efficiency and surface finish in contouring operations. It is suitable for precision engineering and general industrial applications.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SM-4M SC | 9.6 | 16 | 6 | 61 | silver brazed | double |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
Tungsten carbide rotary burrs are essential precision tools that have revolutionized material processing ways across multiple industries. These high-performance cutting tools are made from premium-grade tungsten carbide, offering exceptional hardness (up to HRA91) and wear resistance that enable them to process materials with hardness up to HRC60.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
