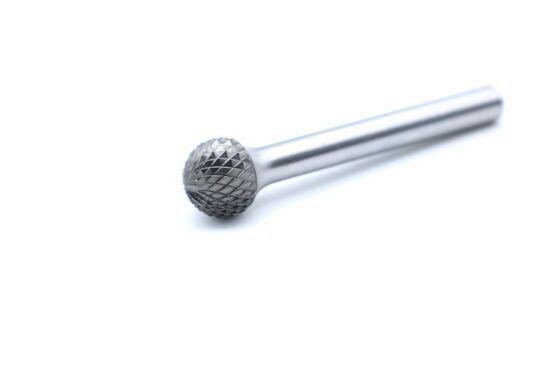

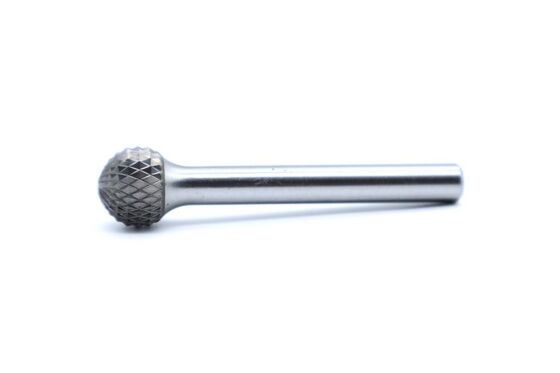

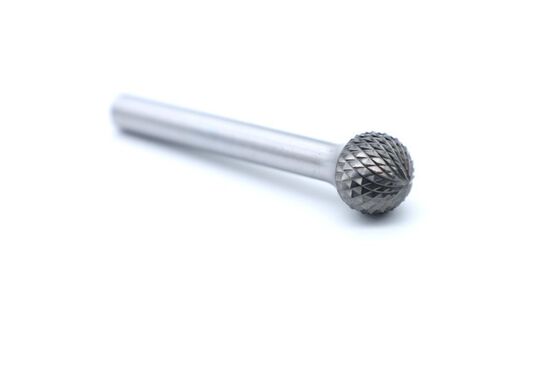

SD-2M Diamond Cut Carbide Burr - For Controlled Chip Breaking and High Alloy Steel Machining
| Place of Origin | CHINA |
|---|---|
| Brand Name | CBT |
| Certification | ISO9001:2008 |
| Model Number | SD-2M DM |
| Minimum Order Quantity | 100pcs |
| Price | 1-10usd |
| Packaging Details | single blue/red tube, red case, carton |
| Delivery Time | 15-30days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 70000pcs/month |
Product Details
| Model | SD-2M DM | Cut Dia | 8mm |
|---|---|---|---|
| Cut Lenngth | 6.4mm | Shank Dia | 8mm |
| Overall | 51mm | Cut | Diamond |
| Type | Silver Braze | Material | Tungsten Carbide |
| Grade | YG7 | Workpiece | Steel, Cast Iron |
| Highlight | durable Chipbreaker Carbide Burr,high Performance Chipbreaker Carbide Burr,high Performance carbide burr drill bit |
||
Product Description
SD-2M Diamond Cut Carbide Burr - For Controlled Chip Breaking and High Alloy Steel Machining
The SD-2M diamond Carbide Burr is designed for controlled chip breaking, with its unique tooth geometry actively breaking chips during the cutting process. This design is particularly suitable for machining high-toughness materials prone to producing long, continuous chips, such as stainless steel and superalloys. It effectively prevents hazardous chip tangling, workpiece surface scoring, and improves chip evacuation.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SD-2M DM | 8 | 6.4 | 8 | 51 | Silver braze | Diamond |
By breaking long chips into short, regular C-shaped or figure-6 chips, this tool significantly enhances safety and continuity in deep-hole, cavity, and automated machining. Its optimized cutting edges maintain good cutting sharpness and surface finish while performing the chip-breaking function, making it a key tool for improving the efficiency and safety of high-alloy steel machining.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
