SL‑4M AlTiN Coated Ball Nosed Cone Aluminum Cut Carbide Burr For Aluminum Curved

  • SL‑4M AlTiN Coated Ball Nosed Cone Aluminum Cut Carbide Burr For Aluminum Curved
  • SL‑4M AlTiN Coated Ball Nosed Cone Aluminum Cut Carbide Burr For Aluminum Curved
Place of Origin CHINA
Brand Name CABURTECH
Certification ISO9001-2008
Model Number SL-4M AL
Minimum Order Quantity 100PCS/MODEL
Price 1-25USD
Packaging Details Standard Export Carton
Delivery Time 15-30DAYS
Payment Terms L/C,T/T,Western Union
Supply Ability 60000-70000PCS/MONTH
Product Details
Model SL-4M AL Cut Dia 12.7mm
Cut Length 28mm Shank 6mm
Overall 73mm Cut AL
Coating AlTiN Material Tungsten Carbide
Grade YG8 Type Silver Braze
Workpiece Aluminum, Steel, Cast Iron
Highlight

double cut rotary burr cutter

,

AlTiN Coated rotary burr cutter

,

double cut rotary tool burr bits
Leave a Message
Product Description

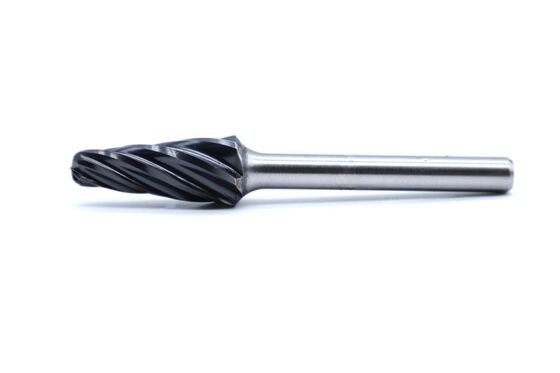

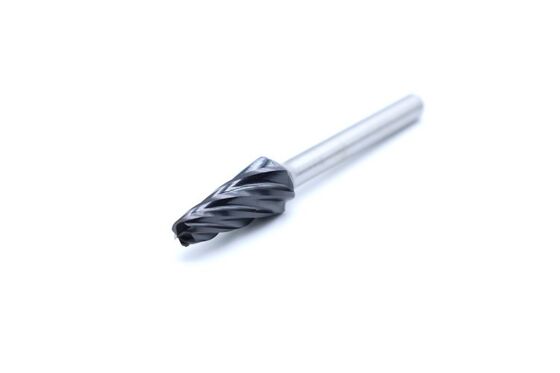

SL‑4M AlTiN‑Coated Ball Nosed Cone Aluminum Cut Carbide Burr - For Aluminum Curved and High‑Temp Work



The SL‑4M carbide rotary burr combines an AlTiN coating with an aluminum‑cut design and a ball nosed cone profile, optimized for curved‑surface machining, internal‑corner work, and high‑temperature environments on aluminum and aluminum alloys. The coating enhances surface hardness and heat resistance, reducing wear and material adhesion during cutting and extending tool life.

Technical Parameters
Model Cut dia (D1) Cut length (D2) Shank (L1) Overall (L2) Type Cut
SL-4M AL 12.7 28 6 73 Silver braze Aluminum



Care Selections-carbide grades Cobalt(%) Hardness(HRA) T.R.S(N/mm2)
Carbide Grades YG7 7 90.5 3000
YG8 8 89.5 3400
YG6X 6 91.7 3400
YG10X 10 90-91 3000
Care Selections-Coatings Color Thickness(μm) Hardness(Hmv)
Coatings AlTiN Grey 1-5 3000-3500
TiN Gold 8-15 3200
Nanoblue Blue 8-15 3500
Gilt Rainbow 0.2-0.5 7000-8000

The ball nose allows smooth contact with complex curves and internal radii, while the tapered area is suitable for slope finishing and progressive material removal. The aluminum‑cut further reduces adhesion risks in soft‑metal processing. The tool performs reliably during continuous or high‑temperature operations, balancing efficiency with machining quality.

Compatible with standard electric and pneumatic equipment, it is easy to operate and maintain. Widely used in high‑temperature trimming of aluminum molds, curved‑surface finishing of components, weld‑transition processing, and heat‑resistant aluminum part machining, this is a practical rotary burr that integrates coating technology with soft‑metal machining features.



Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.





FAQ

1.How to Use:

This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.

2.OEM:

We offer OEM services to cater to specific customer requirements.

3.MOQ:

The usual minimum order quantity is 100 pcs per model.

However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.

4.Lead Time:

The lead time for regular orders is approximately one month, excluding samples.

5.Port:

Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
