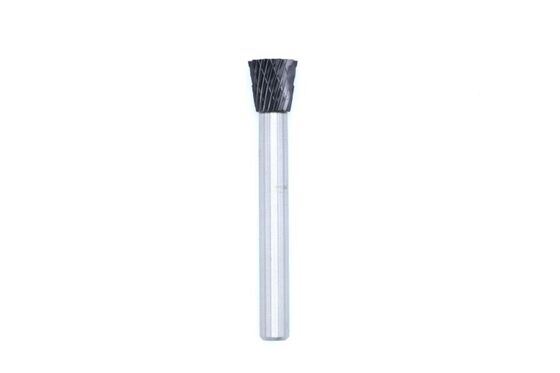

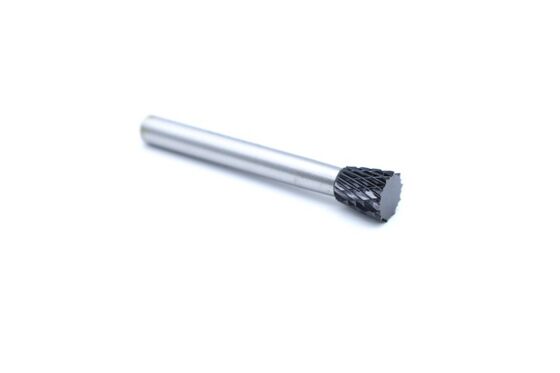

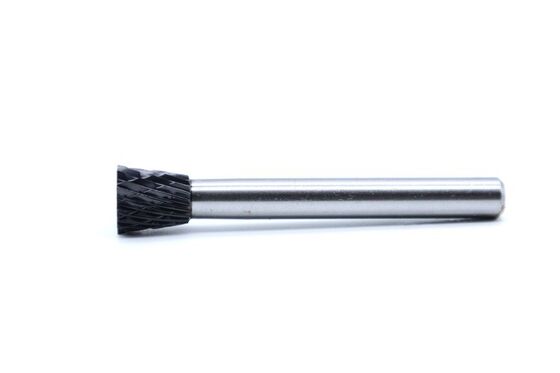

SN-4M Carbide Rotary Bit AlTiN Coated Carbide Rotary Tool Bits Inverted Cone Design
| Place of Origin | CHINA |
|---|---|
| Brand Name | Caburtech CBT |
| Certification | ISO9001-2008 |
| Model Number | SN-4M DC |
| Minimum Order Quantity | 100 |
| Price | 1-25usd/pcs |
| Packaging Details | Plastic case |
| Delivery Time | 15-30 |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 70000/pcs |
Product Details
| Model | SN-4M DC | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 12.7mm | Shank | 6mm |
| Overall | 58mm | Cut | DC |
| Coating | TiAlN | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | ||
| Highlight | Carbide Rotary Bit Wear Resistant,AlTiN Coated Carbide Rotary Tool Bits,Inverted Cone Carbide Rotary Tool Bits |
||
Product Description
SN-4M AlTiN Coated Double Cut Carbide Burr - Heat and Wear Resistant Inverted Cone Design
The SN-4M carbide rotary burr features an inverted cone shape with a double‑cut design and an AlTiN (aluminum titanium nitride) coating, suitable for internal hole work, reverse‑slope finishing, and concave contour machining. The coating enhances surface hardness and heat resistance, reducing wear during continuous use and extending tool life.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SN-4M DC | 12.7 | 12.7 | 6 | 58 | Silver braze | Double |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
| Care Selections-Coatings | Color | Thickness(μm) | Hardness(Hmv) | |
| Coatings | AlTiN | Grey | 1-5 | 3000-3500 |
| TiN | Gold | 8-15 | 3200 | |
| Nanoblue | Blue | 8-15 | 3500 | |
| Gilt | Rainbow | 0.2-0.5 | 7000-8000 | |
The inverted cone profile enables progressive cutting from the inside outward, allowing access to inner edges and chamfer areas that are difficult to reach with standard tools. The double‑cut structure balances material removal efficiency with surface smoothness. The AlTiN coating performs reliably under moderate cutting conditions, helping maintain cutting sharpness and processing consistency.
Compatible with standard electric and pneumatic tools, it is easy to operate and maintain. Widely used in mold‑cavity chamfering, pipe‑end finishing, inner‑edge machining of mechanical components, and special concave‑profile workpiece processing, this is a durable and practical coated rotary burr tool.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
