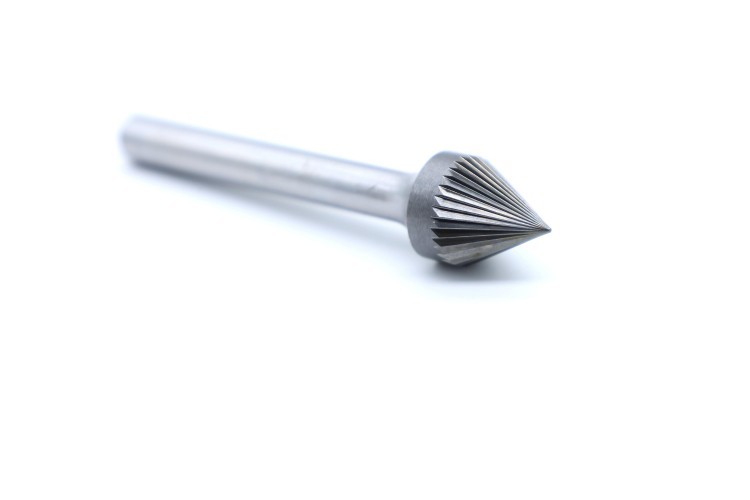

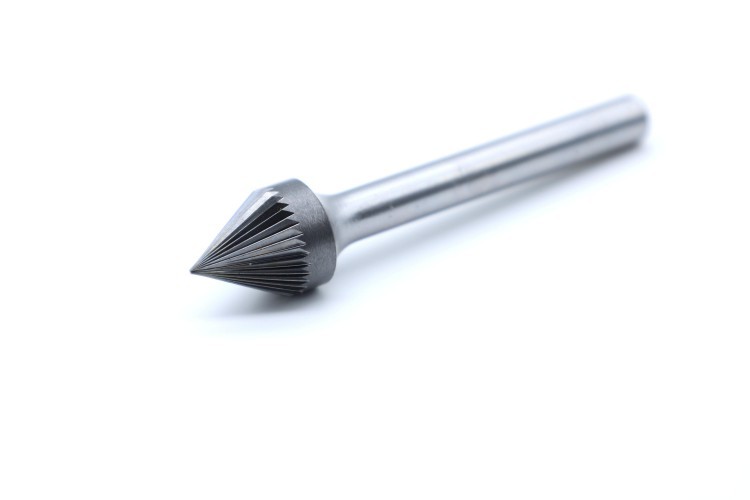

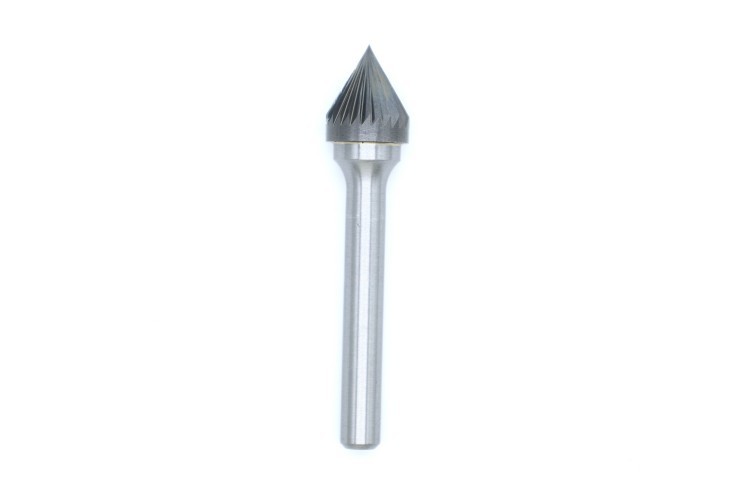

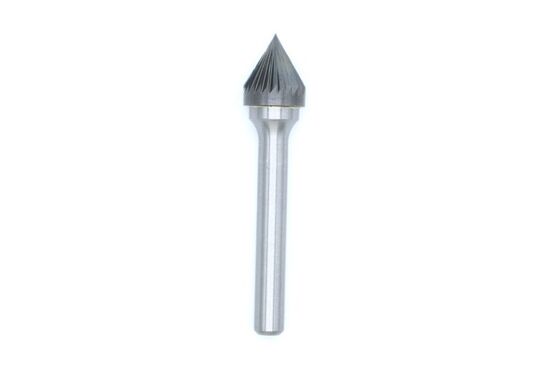

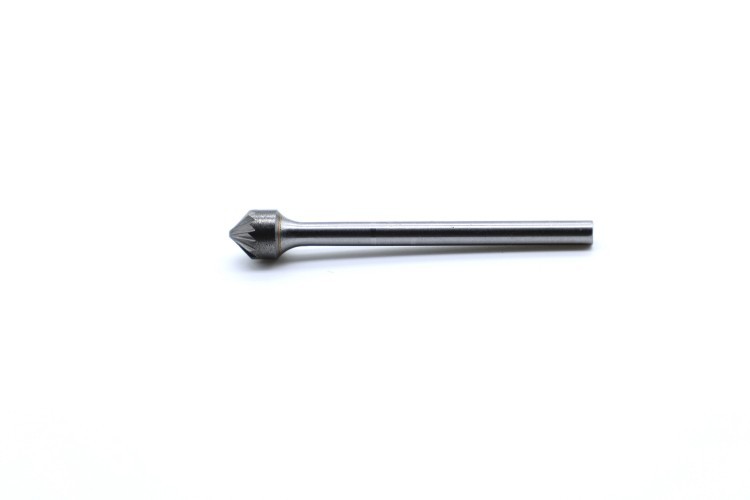

SJ-5M Single Cut Non-Standard Angle Burr - 60° Special Angle Cutting Tool
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001：2008 |
| Model Number | SJ-5M SC |
| Minimum Order Quantity | 50 pcs |
| Price | 1-5usd/pc |
| Packaging Details | carton43*25*22.5cm |
| Delivery Time | 15-30 days |
| Payment Terms | T/T,L/C,Western Union |
| Supply Ability | 70000pcs/month |
Product Details
| Grade | YG8 | MODEL | SJ-5M SC |
|---|---|---|---|
| CUT DIA | 12.7mm | Cut Length | 11mm |
| Shank Dia | 6mm | Overall | 56mm |
| Material | Tungsten Carbide | Cut | Single |
| Type | Silver Braze | Workpiece | Steel, Cast Iron |
| Highlight | 90° angle tungsten carbide burr,60° special angle cutting tool,non-standard angle carbide burr |
||
Product Description
SJ-5M Non-Standard Angle Burr - 60° Special Angle Cutting Tool
The SJ-5M Non-Standard Angle Burr is designed for precision operations requiring specific angular machining. Its customized 60° working angle can accurately perform V-groove milling, specific chamfering, and mold internal corner cleaning—tasks that are difficult to accomplish with standard tools. This unique geometry directly addresses specific process requirements in aerospace, precision mold making, and complex mechanical component manufacturing.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SJ-5M SC | 12.7 | 11 | 6 | 56 | silver brazed | single |
The tool is made of high-strength tungsten carbide material, ensuring cutting edge stability and durability when machining difficult-to-cut materials such as stainless steel and superalloys. Its precise angle control allows operators to obtain accurate and highly consistent machining features in a single pass without the need for complex fixtures or multiple adjustments, significantly improving the efficiency and quality of special angular processes.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
