SM-5M Cone Steel Cut Carbide Burr - For Steel Slope and Hole Machining
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SM-5M ST |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-25USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SM-5M ST | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 22mm | Shank | 6mm |
| Overall | 67mm | Cut | ST |
| Coating | No | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | ||
| Highlight | alloy steel Carbide Rotary Burr,alloy steel carbide burr set,high performance carbide burr set |
||
Product Description

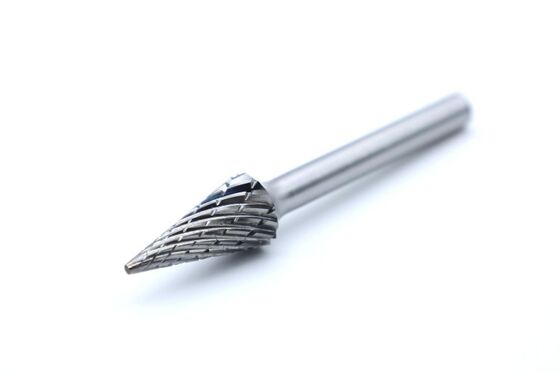

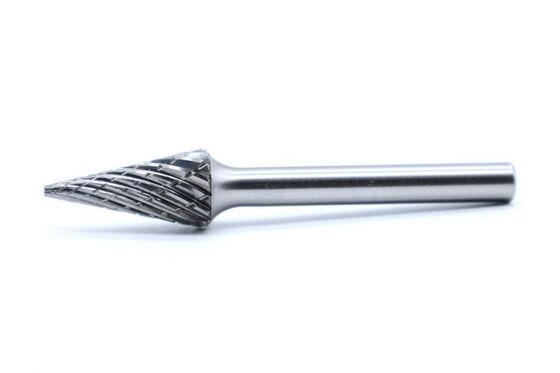

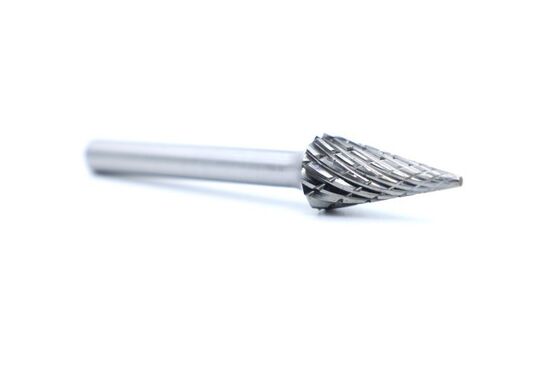

SM-5M Cone Steel Cut Carbide Burr - For Steel Slope and Hole Machining
The SM-5M carbide rotary burr features a steel‑cut tooth profile and tapered design, developed specifically for slope cutting, hole‑edge finishing, and chamfering on common steels such as carbon steel and alloy steel. The tapered shape facilitates work on grooves, gradual surfaces, and internal‑corner areas, while the steel‑cut profile helps improve cutting efficiency and reduces material adhesion.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SM-5M ST | 12.7 | 22 | 6 | 67 | Silver braze | Steel |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
This tool is suitable for precision machining of various steel workpieces, maintaining stable cutting performance and surface quality during continuous use. Its design balances practicality and durability, making it compatible with standard electric and pneumatic equipment.
Easy to operate and maintain, it is widely used in mold trimming, weld‑seam processing, part chamfering, and mechanical assembly‑hole finishing. This is a practical rotary burr optimized for steel machining applications.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
