SD-5M Ball Shape Aluminum Cut Carbide Burr - For Curved and Internal Aluminum Machining

  • SD-5M Ball Shape Aluminum Cut Carbide Burr - For Curved and Internal Aluminum Machining
  • SD-5M Ball Shape Aluminum Cut Carbide Burr - For Curved and Internal Aluminum Machining
  • SD-5M Ball Shape Aluminum Cut Carbide Burr - For Curved and Internal Aluminum Machining
Place of Origin CHINA
Brand Name CABURTECH
Certification ISO9001-2008
Model Number SD-5M AL
Minimum Order Quantity 100PCS/MODEL
Price 1-30USD
Packaging Details Standard Export Carton
Delivery Time 15-30DAYS
Payment Terms L/C,T/T,Western Union
Supply Ability 60000-70000PCS/MONTH
Product Details
Model SD-5M AL Cut Dia 12.7mm
Cut Length 11mm Shank 6mm
Overall 56mm Cut AL
Coating No Material Tungsten Carbide
Grade YG8 Type Silver Braze
Workpiece Aluminum, Steel, Cast Iron
Highlight

Precision Machining Tungsten Carbide Rotary Burr

,

Industrial Applications Carbide Rotary Burr

,

YG8 Tungsten Carbide Rotary Burr
Leave a Message
Product Description

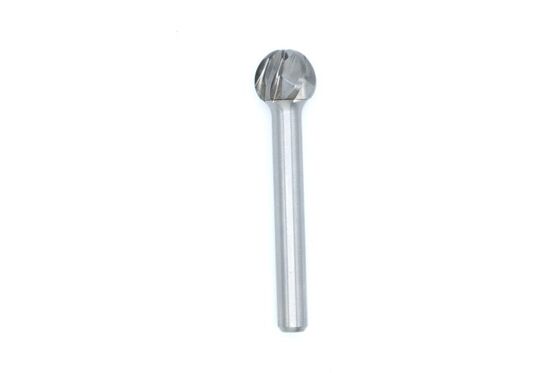

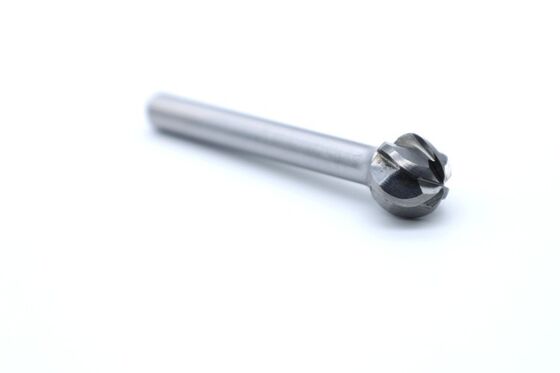

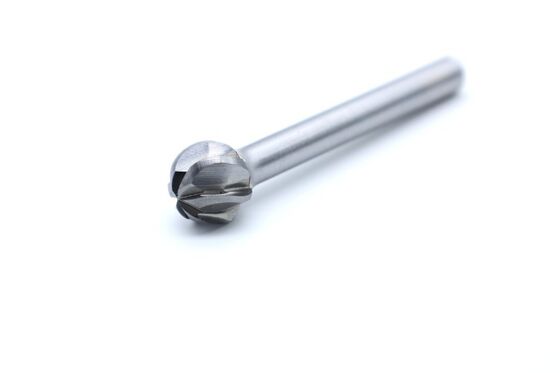

SD-5M Ball Shape Aluminum Cut Carbide Burr - For Curved and Internal Aluminum Machining


The SD-5M carbide rotary burr features an aluminum‑cut tooth profile and a spherical shape, optimized for processing aluminum and other soft metals. The ball shape allows multi‑angle contact with the workpiece, facilitating curved transitions, internal radii, and complex contour work. The aluminum‑cut design helps reduce material adhesion, improving machining smoothness and surface finish.

Technical Parameters
Model Cut dia (D1) Cut length (D2) Shank (L1) Overall (L2) Type Cut
SD-5M AL 12.7 11 6 56 Silver braze Aluminum


Care Selections-carbide grades Cobalt(%) Hardness(HRA) T.R.S(N/mm2)
Carbide Grades YG7 7 90.5 3000
YG8 8 89.5 3400
YG6X 6 91.7 3400
YG10X 10 90-91 3000


This tool is suitable for deburring, chamfering, weld‑seam finishing, and surface smoothing on non‑ferrous metals such as aluminum, aluminum alloys, and copper. Made from wear‑resistant carbide, it maintains stable cutting performance and tool life during continuous use.

Compatible with standard electric and pneumatic equipment, it is easy to operate and maintain. Widely used in aluminum component machining, mold contour trimming, post‑weld processing, and routine maintenance, this is a practical rotary burr designed for aluminum‑specific applications.

SD-5M Ball Shape Aluminum Cut Carbide Burr - For Curved and Internal Aluminum Machining 0


Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.





FAQ

1.How to Use:

This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.

2.OEM:

We offer OEM services to cater to specific customer requirements.

3.MOQ:

The usual minimum order quantity is 100 pcs per model.

However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.

4.Lead Time:

The lead time for regular orders is approximately one month, excluding samples.

5.Port:

Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
