SF-5M Ball Nosed Tree Aluminum Cut Carbide Burr - For Multi-Angle Aluminum Machining
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SF-5M AL |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-25USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SF-5M AL | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 25mm | Shank | 6mm |
| Overall | 70mm | Cut | AL |
| Coating | No | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Aluminum, Steel, Cast Iron | ||
| Highlight | aluminum carbide burrs,smooth performance carbide rotary burrs,smooth performance tungsten carbide burr bits |
||
Product Description

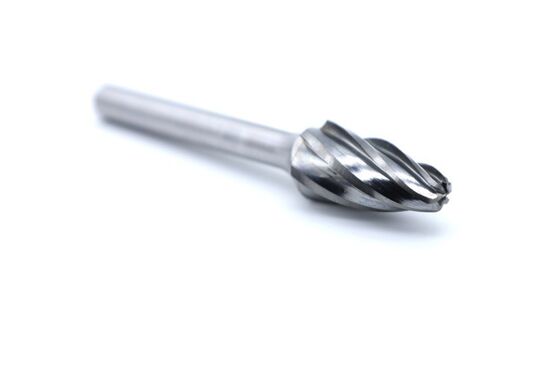

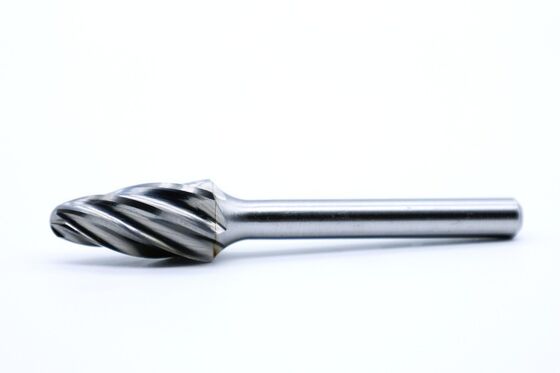

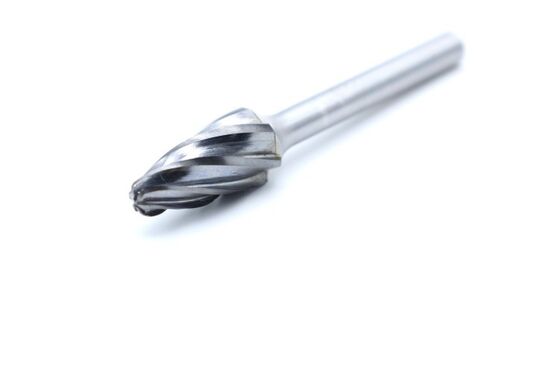

SF-5M Ball Nosed Tree Aluminum Cut Carbide Burr - For Multi-Angle Aluminum Machining
The SF-5M carbide rotary burr features an aluminum‑cut tooth profile combined with a ball nosed tree shape, designed specifically for multi‑angle and complex‑contour machining of aluminum and soft metals. The ball nose facilitates curved transitions and internal‑corner work, while the tree‑like extension covers deep grooves, stepped surfaces, and irregular areas, improving machining adaptability and efficiency.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SF-5M AL | 12.7 | 25 | 6 | 70 | Silver braze | Aluminum |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
The aluminum‑cut design helps reduce material adhesion, maintaining cutting smoothness and surface finish. It is suitable for deburring, chamfering, weld‑seam finishing, and surface refinement on non‑ferrous metals such as aluminum, aluminum alloys, and copper. Made from wear‑resistant carbide, the tool performs steadily during continuous use, balancing practicality with service life.
Compatible with common electric and pneumatic tools, it is easy to operate and maintain. Widely used in aluminum mold trimming, complex aluminum part shaping, weld‑groove processing, and routine maintenance, this is a specialized rotary burr focused on versatile aluminum machining tasks.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
