SD-5M AlTiN-Coated Aluminum Cut Carbide Burr for Aluminum and Soft Metals
| Place of Origin | CHINA |
|---|---|
| Brand Name | Caburtech |
| Certification | ISO9001-2008 |
| Model Number | SD-5M AL |
| Minimum Order Quantity | 100 |
| Price | 1-30usd/pcs |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SD-5M AL | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 11mm | Shank | 6mm |
| Overall | 56mm | Cut | AL |
| Coating | AlTiN | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Aluminum, Steel, Cast Iron | ||
| Highlight | AlTiN Coated Carbide Burr,Aluminum Cut Rotary Burr,12.7mm Cut Dia Carbide Rotary Burr |
||
Product Description

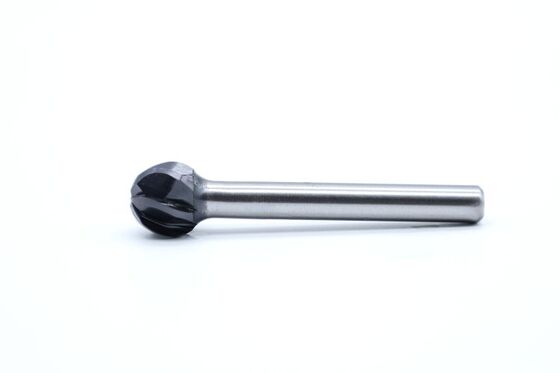

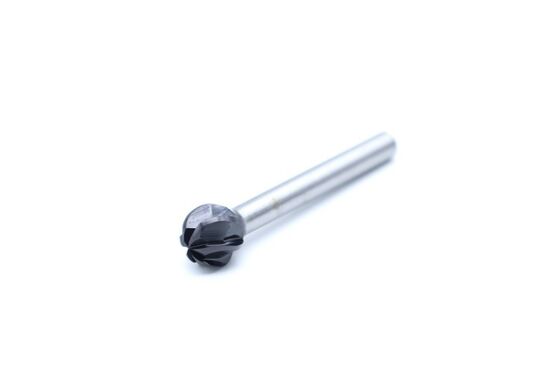

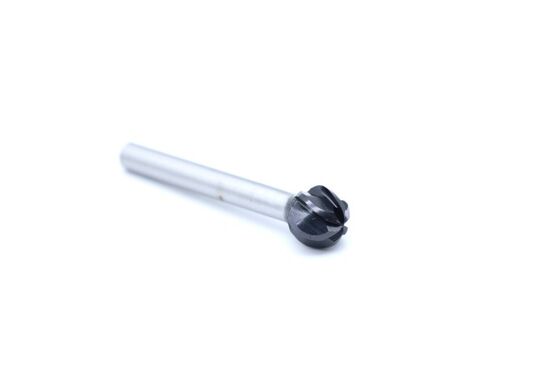

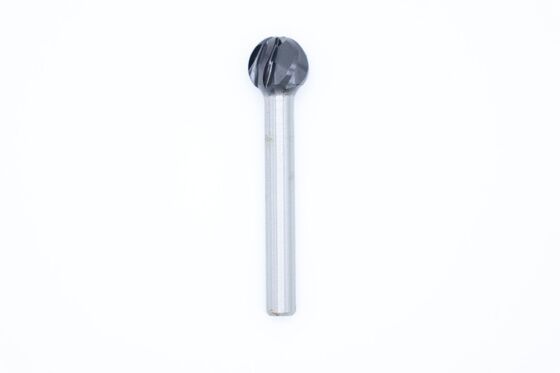

SD-5M AlTiN-Coated Aluminum Cut Carbide Burr for Aluminum and Soft Metals
The SD-5M carbide rotary burr features an aluminum-cut design with an AlTiN (aluminum titanium nitride) coating, optimized for cutting, finishing, and surface processing of soft metals such as aluminum, aluminum alloys, and copper. The coating enhances surface hardness and heat resistance, reducing wear during continuous use and extending tool life.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SD-5M AL | 12.7 | 11 | 6 | 56 | Silver braze | Aluminum |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
| Care Selections-Coatings | Color | Thickness(μm) | Hardness(Hmv) | |
| Coatings | AlTiN | Grey | 1-5 | 3000-3500 |
| TiN | Gold | 8-15 | 3200 | |
| Nanoblue | Blue | 8-15 | 3500 | |
| Gilt | Rainbow | 0.2-0.5 | 7000-8000 | |
The aluminum-cut structure effectively reduces material adhesion during processing, maintains smooth cutting, and helps achieve a relatively clean surface finish. The AlTiN coating performs reliably under moderate cutting conditions, helping maintain cutting sharpness and processing consistency. Made from wear-resistant carbide, the tool delivers stable cutting performance during continuous operation.
Compatible with standard electric and pneumatic tools, it is easy to operate and maintain. Widely used in aluminum fabrication, mold finishing, post-weld processing, and routine equipment maintenance, this is a durable coated rotary burr designed specifically for soft metal applications.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
