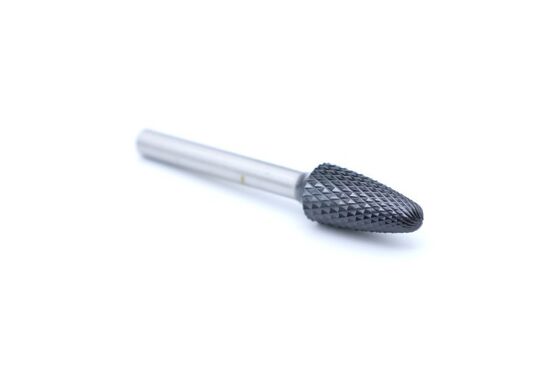

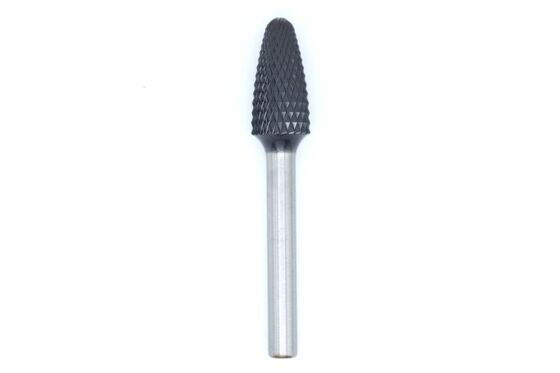

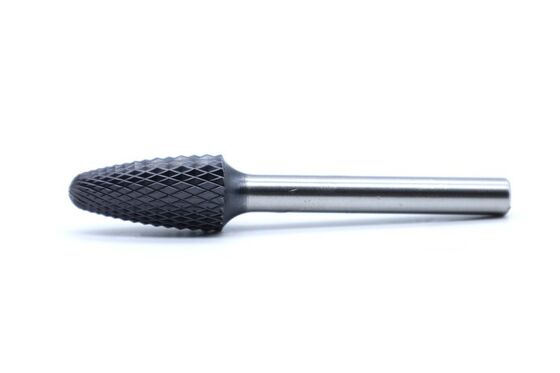

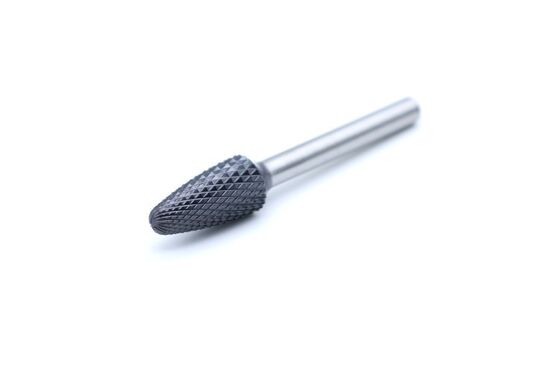

SF-5M AlTiN-Coated Diamond Cut Carbide Burr For Hard Materials with Extended Tool Life
| Place of Origin | CHINA |
|---|---|
| Brand Name | Caburtech |
| Certification | ISO9001-2008 |
| Model Number | SF-5M DM |
| Minimum Order Quantity | 100 |
| Price | 1-30usd/pcs |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SF-5M DM | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 25mm | Shank | 6mm |
| Overall | 70mm | Cut | DM |
| Coating | AlTiN | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | ||
| Highlight | AlTiN Coated Carbide Burr,Diamond Cut Rotary Burr,Extended Tool Life Carbide Rotary Tool |
||
Product Description
SF-5M AlTiN-Coated Diamond Cut Carbide Burr For Hard Materials with Extended Tool Life
The SF-5M carbide rotary burr features a diamond-cut design with an AlTiN (aluminum titanium nitride) coating, suitable for trimming, deburring, and surface finishing of high-hardness materials such as stainless steel and hardened steel. The coating enhances surface hardness and heat resistance, reducing wear during continuous use and extending tool life.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SF-5M DM | 12.7 | 25 | 6 | 70 | Silver braze | Diamond |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
| Care Selections-Coatings | Color | Thickness(μm) | Hardness(Hmv) | |
| Coatings | AlTiN | Grey | 1-5 | 3000-3500 |
| TiN | Gold | 8-15 | 3200 | |
| Nanoblue | Blue | 8-15 | 3500 | |
| Gilt | Rainbow | 0.2-0.5 | 7000-8000 | |
The diamond-cut structure offers good wear resistance and cutting stability, maintaining consistent performance during continuous operation and meeting applications with moderate quality requirements. The AlTiN coating performs reliably under moderate cutting conditions, helping maintain cutting sharpness and processing consistency. Made from a carbide base with a diamond-cut surface, the tool combines durability with effective cutting performance.
Compatible with standard electric and pneumatic tools, it is easy to operate and maintain. Widely used in precision mold processing, high-hardness part finishing, post-weld surface treatment, and specialty material shaping, this is a durable coated rotary burr designed for hard material applications.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
