SM-5ZML2 Extended Shank Conical Single Cut Carbide Burr with 12mm Head and 50mm Shank for Angled Surfaces
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SM-5ZML2 SC |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-30USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model: | SM-5ZML2 SC | Cut Dia: | 12mm |
|---|---|---|---|
| Cut Length: | 25mm | Shank: | 6mm |
| Overall: | 70mm | Cut: | SC |
| Coating: | No | Material: | Tungsten Carbide |
| Grade: | YG8 | Type: | Silver Braze |
| Workpiece: | Steel, Cast Iron | ||
| Highlight: | 12mm Head Carbide Burr,50mm Shank Rotary Burr,Single Cut Long Shank Burr |
||
Product Description

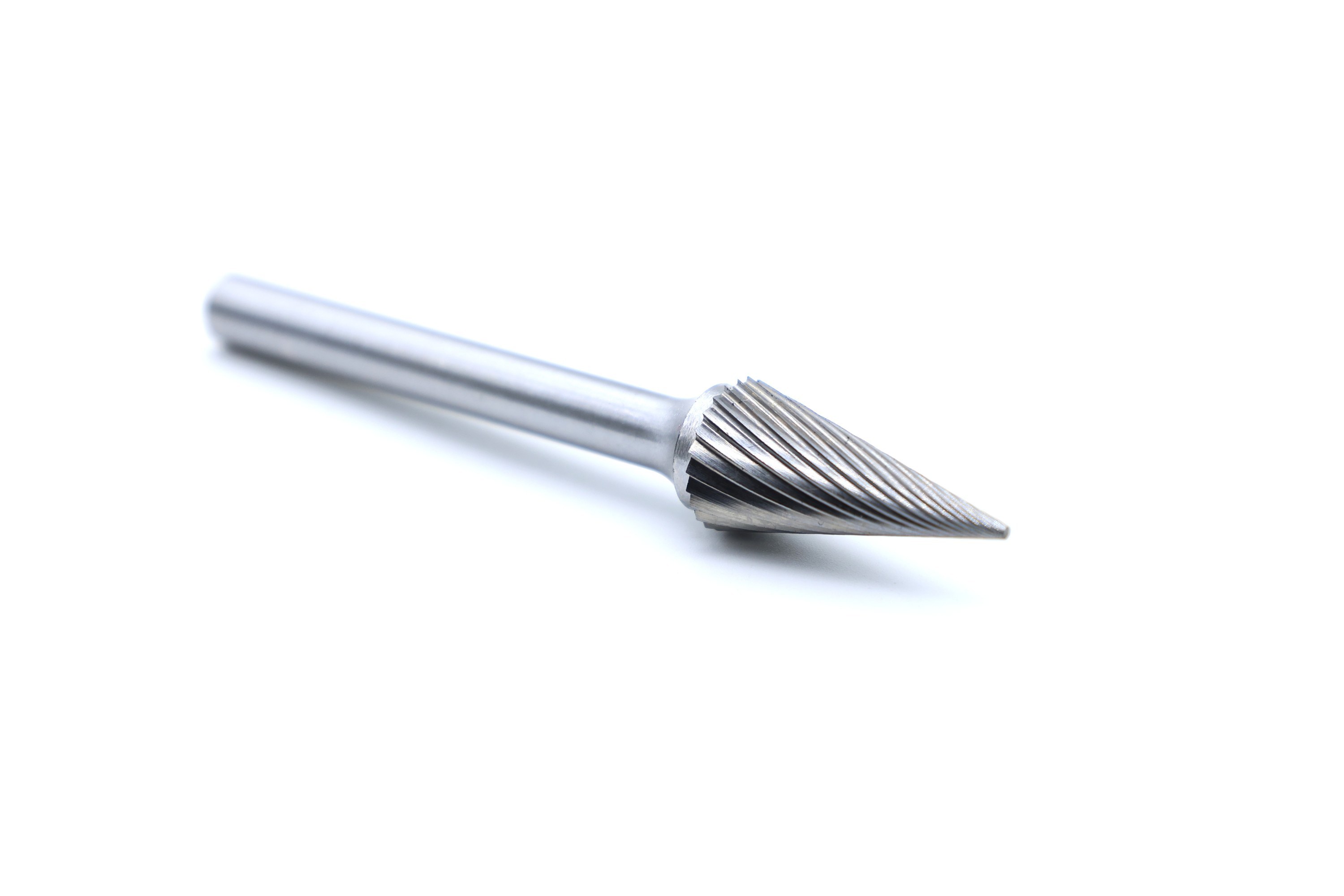

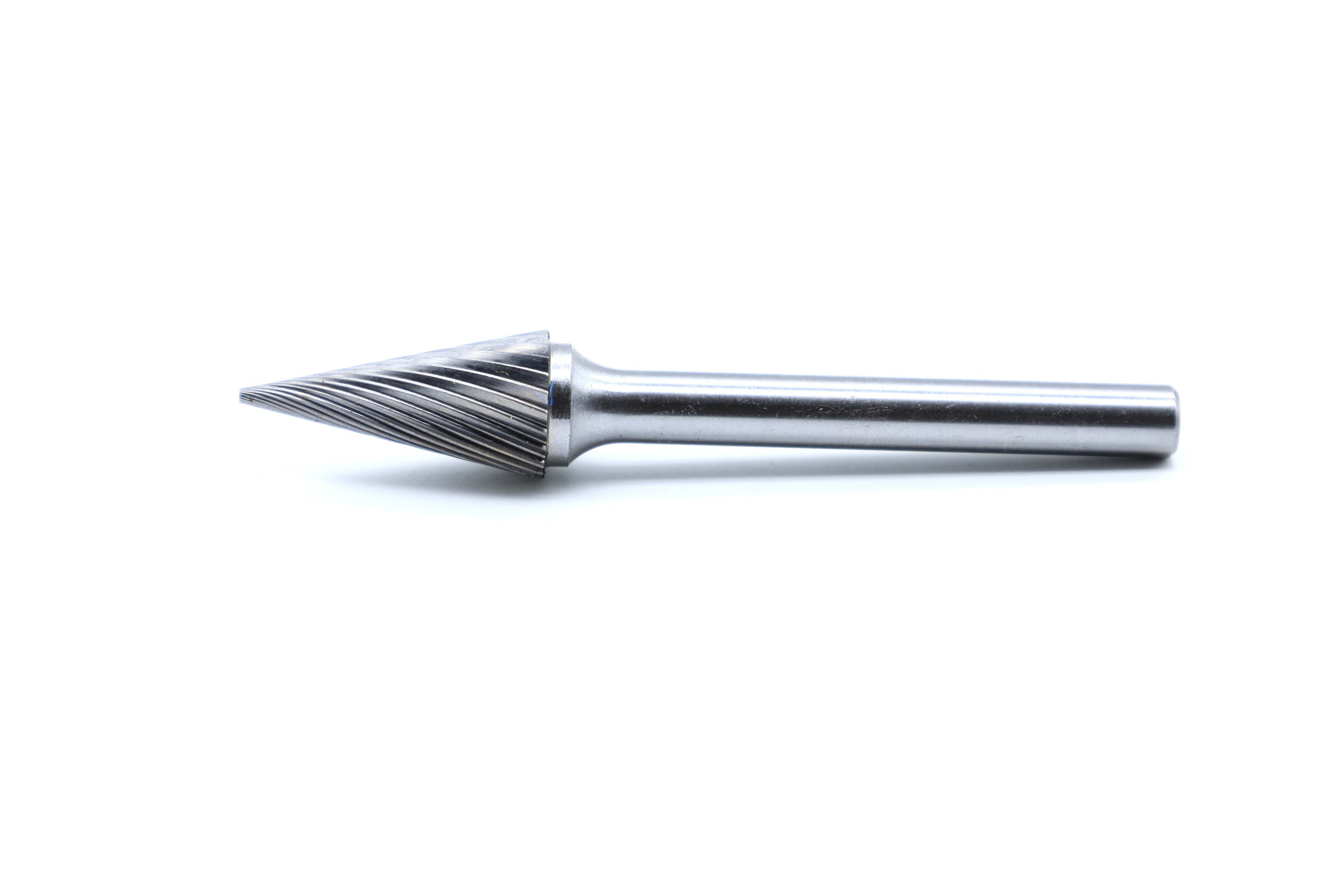

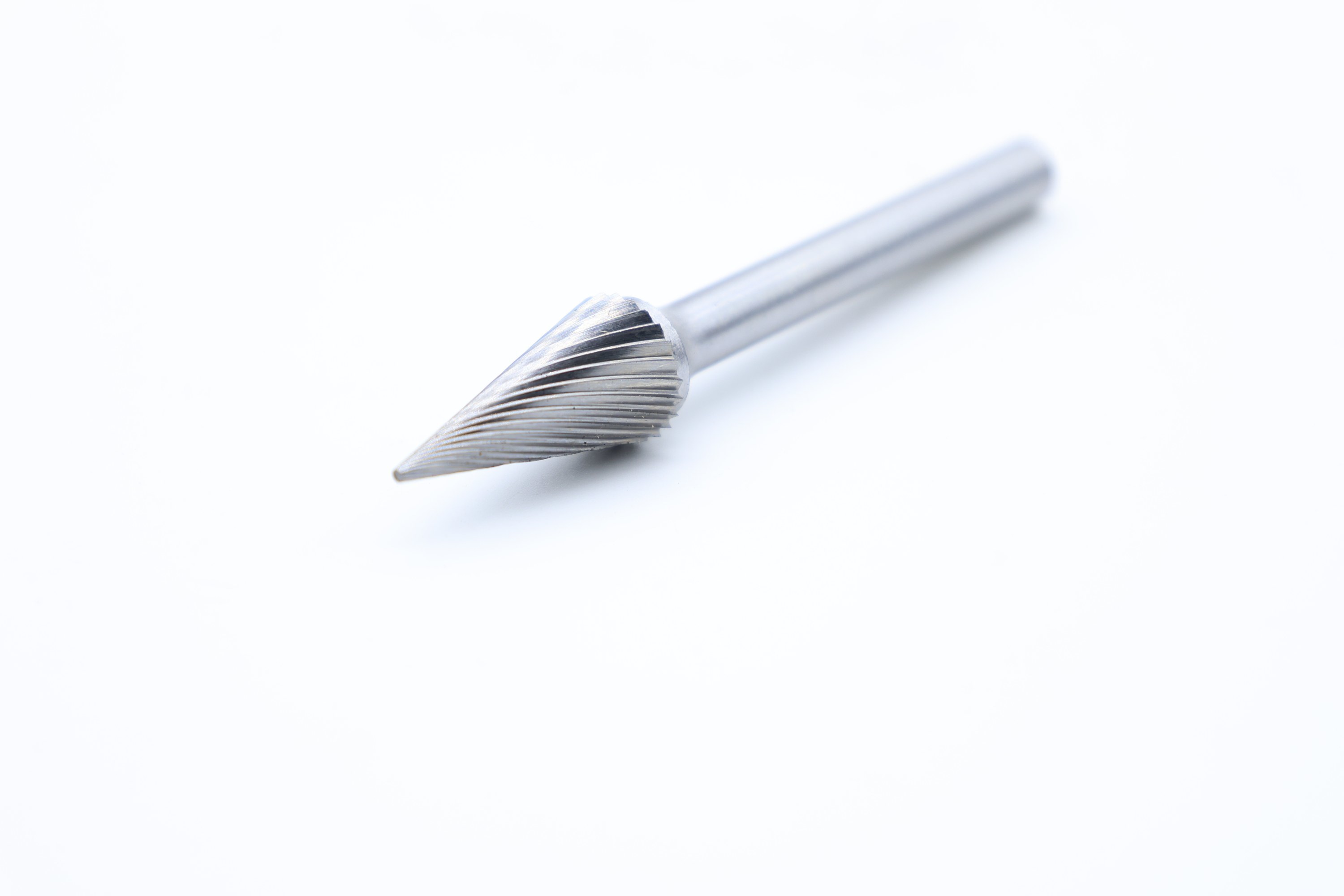

SM-5ZML2 Extended Shank Conical Single Cut Burr 12mm Head with 50mm Shank for Angled Surfaces
The SM-5ZML2 SC is a long-reach carbide rotary burr with a conical head and single‑cut design. With a 12mm head diameter, 25mm cutting length, and a 50mm extended shank, it is built for finishing on slopes, chamfers, and hole edges.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SM-5ZML2 SC | 12 | 25 | 6 | 70 | Silver braze | Single |
The tapered shape provides good access to angled surfaces and narrow openings, while the single‑cut pattern allows fine finishing with smooth chip flow. Suitable for use on stainless steel, carbon steel, and aluminum. Made from solid carbide, the tool holds up well during extended operation.
Works with standard electric and pneumatic tools. Common uses include mold finishing, edge chamfering, and hole edge smoothing.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
