TiAlN Coated Double Cut Carbide Burr SG-5M Tree Shape For High Strength Metal
| Place of Origin | CHINA |
|---|---|
| Brand Name | Caburtech CBT |
| Certification | ISO9001-2008 |
| Model Number | SG-5M DC |
| Minimum Order Quantity | 100 |
| Price | 1-25usd/pcs |
| Packaging Details | Plastic case |
| Delivery Time | 15-30 |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 70000/pcs |
Product Details
| Model | SG-5M DC | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 25mm | Shank | 6mm |
| Overall | 70mm | Cut | DC |
| Coating | TiAlN | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | ||
| Highlight | 3mm Shank Carbide Burr,High Accuracy Tungsten Carbide Burr,High Accuracy Carbide Burrs With Coatings |
||
Product Description

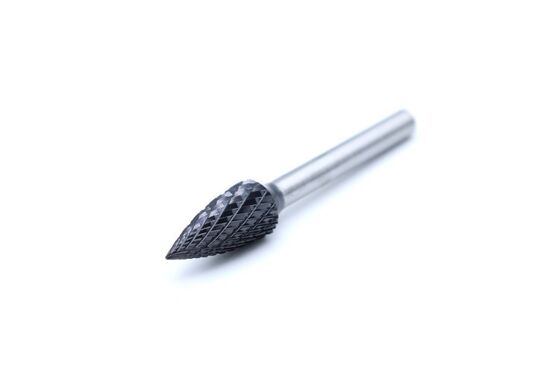

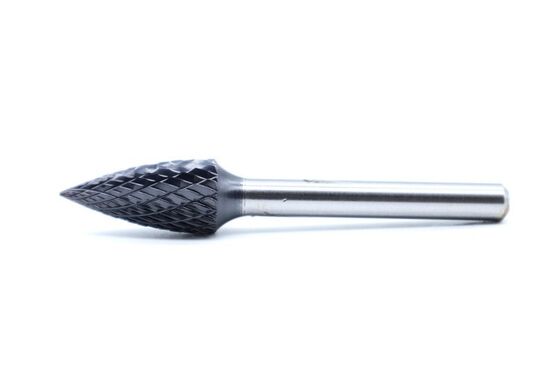

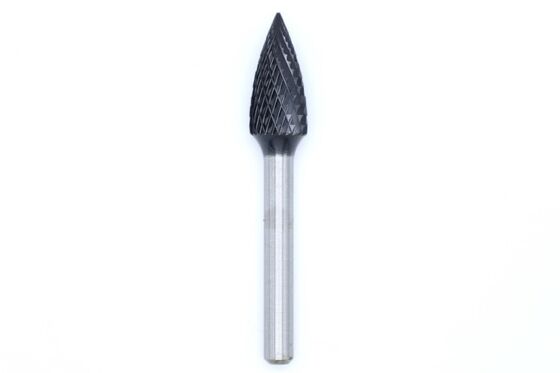

SG-5M TiAlN Coated Tree Double Cut Carbide Burr - For High-Strength Metal and Heat-Resistant Work
The SG-5M carbide rotary burr features a TiAlN (titanium aluminum nitride) coating, combined with a double-cut design and tree-shaped structure. It is suitable for machining high‑strength metals and working in elevated‑temperature conditions. The coating enhances surface hardness and heat resistance, reducing wear and adhesion during cutting and extending tool life.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SG-5M DC | 12.7 | 25 | 6 | 70 | Silver braze | Double |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
| Care Selections-Coatings | Color | Thickness(μm) | Hardness(Hmv) | |
| Coatings | AlTiN | Grey | 1-5 | 3000-3500 |
| TiN | Gold | 8-15 | 3200 | |
| Nanoblue | Blue | 8-15 | 3500 | |
| Gilt | Rainbow | 0.2-0.5 | 7000-8000 | |
The tree profile facilitates work on multi‑level steps, deep grooves, and complex internal cavities, while the double‑cut design balances cutting efficiency with surface smoothness. This tool is particularly well‑suited for difficult‑to‑machine materials such as stainless steel, alloy steel, and hardened steel, maintaining stable performance during continuous or high‑speed cutting.
Compatible with standard electric and pneumatic equipment, it is easy to operate and maintain. Widely used in deep‑cavity mold machining, high‑strength part finishing, weld‑seam cleaning, and high‑temperature‑resistant material processing, this is a high‑performance rotary burr that combines coating technology with a practical design.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
