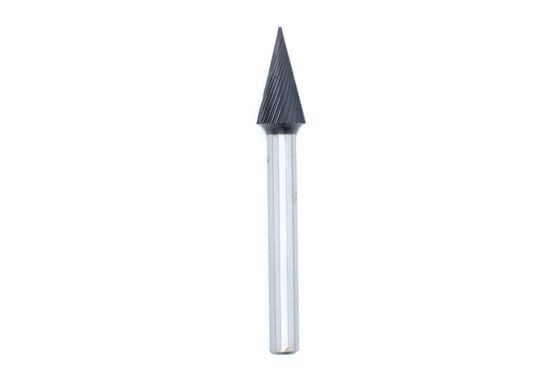

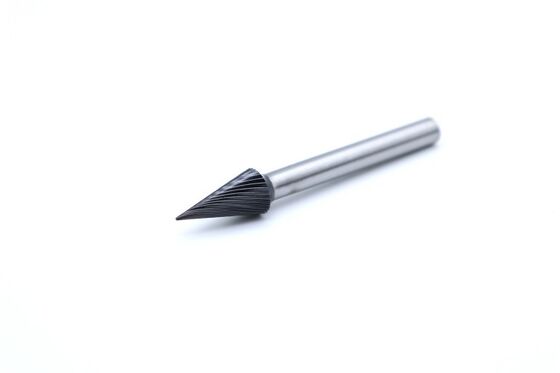

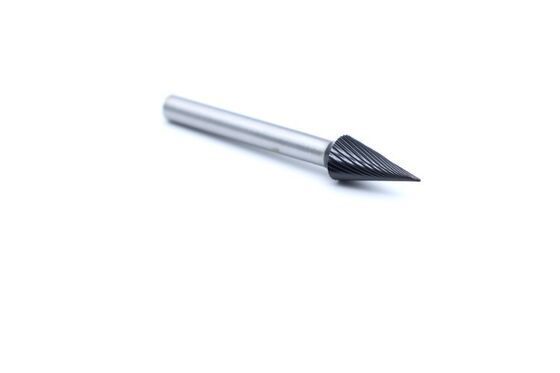

AlTiN Coated Carbide Rotary Burr SM-4M Heat Resistant Tool With Single Fine Cut
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SM-4M SF |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-20USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SM-4M SF | Cut Dia | 9.6mm |
|---|---|---|---|
| Cut Length | 16mm | Shank | 6mm |
| Overall | 61mm | Cut | SF |
| Coating | AlTiN | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | ||
| Highlight | carbide grinding heads for surface finishing,Wear Resistant Carbide Burrs With Coatings,Wear Resistant precision carbide burrs |
||
Product Description
AlTiN Coated Carbide Rotary Burr SM-4M Heat Resistant Tool With Single Fine Cut
The SM-4M carbide rotary burr features a single fine cut design with an AlTiN (aluminum titanium nitride) coating, suitable for finishing, chamfering, and surface smoothing of common metal materials. The coating enhances surface hardness and heat resistance, reducing wear during continuous use and extending tool life.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SM-4M SF | 9.6 | 16 | 6 | 61 | Silver braze | Single Fine |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
| Care Selections-Coatings | Color | Thickness(μm) | Hardness(Hmv) | |
| Coatings | AlTiN | Grey | 1-5 | 3000-3500 |
| TiN | Gold | 8-15 | 3200 | |
| Nanoblue | Blue | 8-15 | 3500 | |
| Gilt | Rainbow | 0.2-0.5 | 7000-8000 | |
The single fine cut structure produces a relatively smooth surface during cutting while maintaining effective chip evacuation. The AlTiN coating performs reliably under moderate cutting conditions, helping maintain cutting sharpness and processing consistency. Made from wear-resistant carbide, the tool delivers stable cutting performance during continuous operation.
Compatible with standard electric and pneumatic tools, it is easy to operate and maintain. Widely used in precision mold finishing, fine component machining, post-weld surface treatment, and routine equipment maintenance, this is a coated rotary burr tool focused on machining accuracy and durability.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
