AlTiN Coated SC-5M Single Cut Carbide Burr for General Machining
| Place of Origin | CHINA |
|---|---|
| Brand Name | Caburtech |
| Certification | ISO9001-2008 |
| Model Number | SC-5M SC |
| Minimum Order Quantity | 100 |
| Price | 1-25usd/pcs |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SC-5M SC | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 25mm | Shank | 6mm |
| Overall | 70mm | Cut | SC |
| Coating | AlTiN | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | ||
| Highlight | YG8 Grade Single Cut Carbide Burr,YG8 Grade Rotary Burr Cutter,Single Cut Carbide Burr AlTiN Coated |
||
Product Description

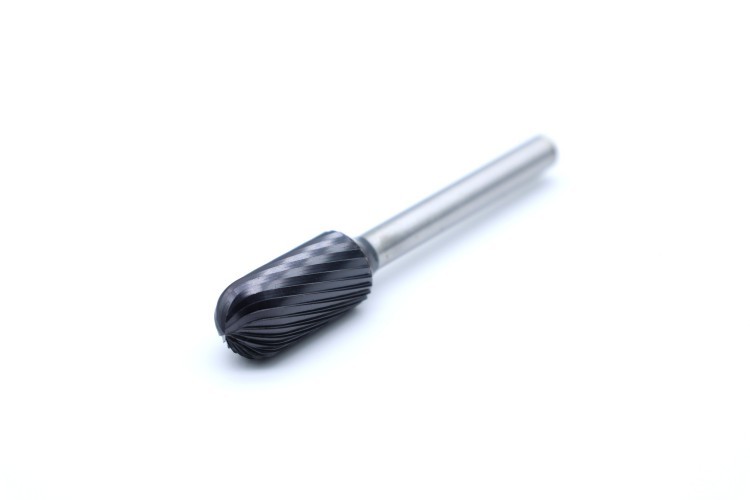

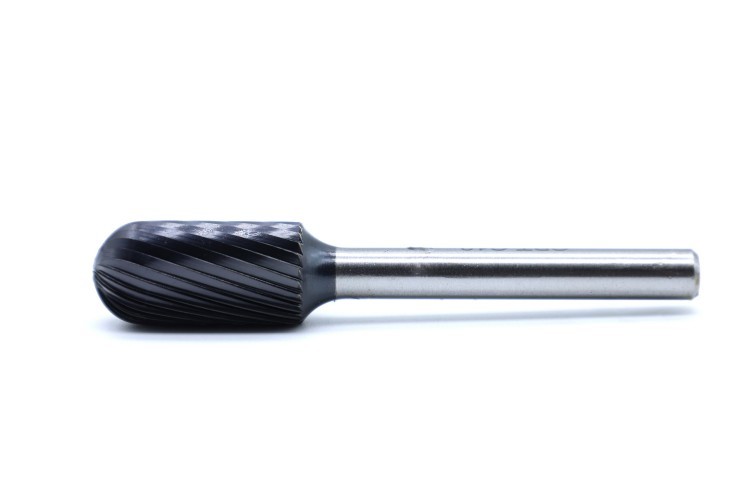

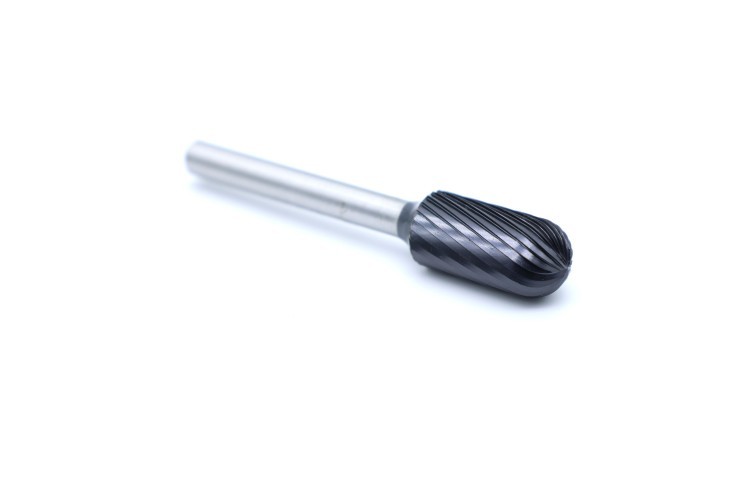

AlTiN Coated SC-5M Single Cut Carbide Burr for General Machining
The SC-5M carbide rotary burr features a single‑cut design with an AlTiN (aluminum titanium nitride) coating, suitable for rough machining of common metal materials. The coating enhances surface hardness and heat resistance, reducing wear during continuous use and extending tool life.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SC-5M SC | 12.7 | 25 | 6 | 70 | Silver braze | Single |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
| Care Selections-Coatings | Color | Thickness(μm) | Hardness(Hmv) | |
| Coatings | AlTiN | Grey | 1-5 | 3000-3500 |
| TiN | Gold | 8-15 | 3200 | |
| Nanoblue | Blue | 8-15 | 3500 | |
| Gilt | Rainbow | 0.2-0.5 | 7000-8000 | |
The single‑cut structure provides smooth chip evacuation during cutting, helping maintain a clean surface finish. The AlTiN coating performs reliably under moderate cutting conditions, helping maintain cutting sharpness and processing consistency. Made from wear‑resistant carbide, the tool delivers stable cutting performance during continuous operation.
Compatible with standard electric and pneumatic tools, it is easy to operate and maintain. Widely used in machining, mold finishing, post‑weld processing, and routine equipment maintenance, this is a durable coated rotary burr tool focused on precision and reliability.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
