SE-5M Oval Single Cut Carbide Burr E12.72206 SC For Metal Machining
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SE-5M SC |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-25USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SE-5M SC | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 22mm | Shank | 6mm |
| Overall | 67mm | Cut | SC |
| Coating | No | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | ||
| Highlight | Oval Double Cut Carbide Burr,Metal Machining Tungsten Carbide Burr,Metal Machining Rotary Burr |
||
Product Description

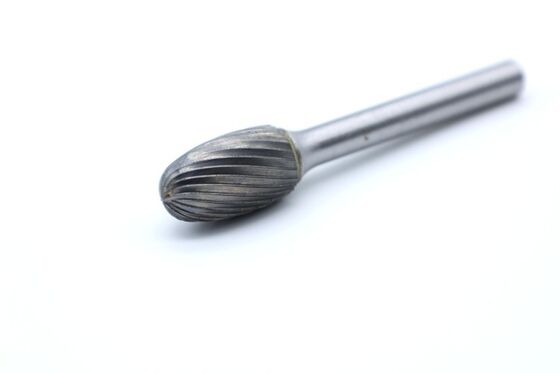

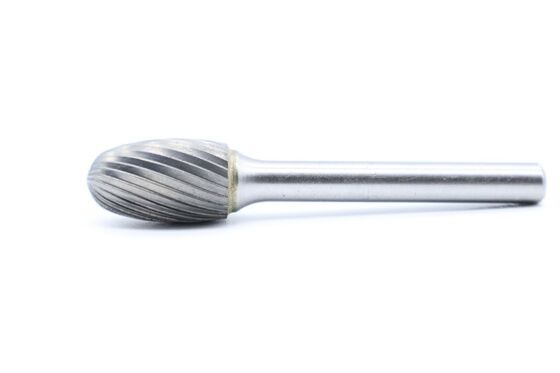

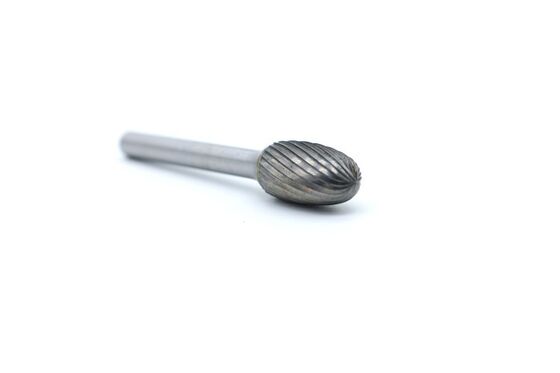

SE-5M Oval Single Cut Carbide Burr - E12.72206 SC For Metal Machining
The SE‑5M carbide rotary burr features a single‑cut design and an oval profile, making it suitable for rough machining of complex curved surfaces, concave areas, and gradual surfaces. The oval shape allows smooth contact with multi‑direction curves, facilitating work on internal radii, grooves, and irregular contours, while the single‑cut structure enables controlled material removal.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SE-5M SC | 12.7 | 22 | 6 | 67 | Silver braze | Single |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
The single cut provides adequate chip‑clearance space while maintaining machining accuracy, making it suitable for detail finishing, deburring, and surface smoothing on materials such as stainless steel, tool steel, and aluminum alloys. Made from wear‑resistant carbide, the tool performs reliably during continuous operation.
Compatible with common electric and pneumatic tools, it is easy to operate and maintain. Widely used for mold‑cavity roughing, complex part concave‑surface processing, weld‑seam blending, and artistic curved‑surface forming, this is a professional rotary burr that balances adaptability with machining precision.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
