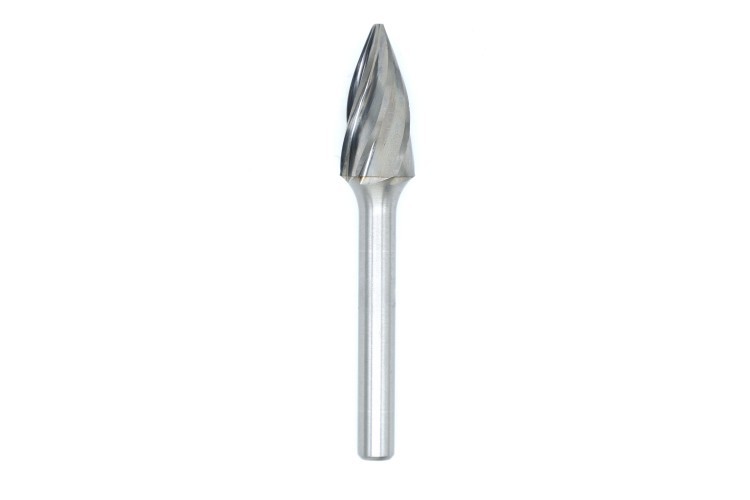

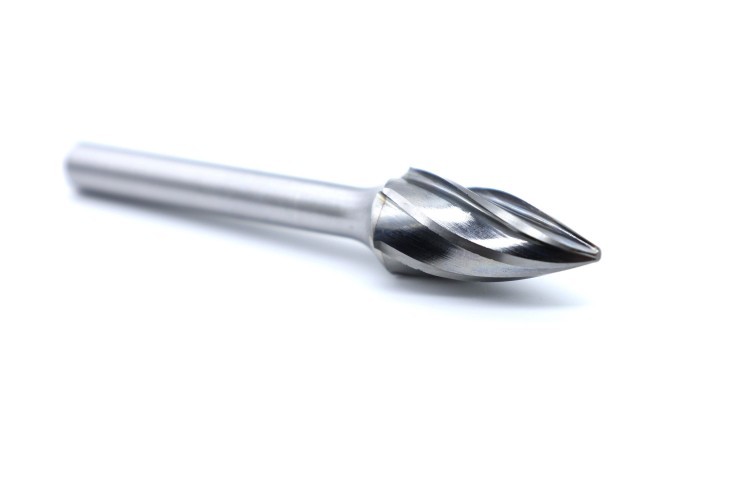

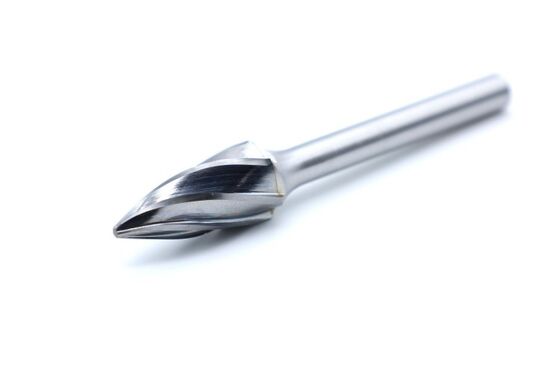

Tree Shape Power Carving Bits SG-5M G12.72506 For Aluminum Processing
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SG-5M AL |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-30USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SG-5M AL | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 25mm | Shank | 6mm |
| Overall | 70mm | Cut | AL |
| Coating | No | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Aluminum, Steel, Cast Iron | ||
| Highlight | Stainless Steel Finishing Carbide Rotary Burr,Weld Seam Removal Tungsten Carbide Burr,Precision Balanced Design Carbide Burr |
||
Product Description
SG-5M Tree Aluminum Cut Carbide Burr - G12.72506 Designed for Aluminum Processing
The SG‑5M carbide rotary burr features an aluminum‑specific tooth profile (aluminum cut) and a tree‑shaped structure, optimized for machining multi‑level steps, deep grooves, and irregular contours on soft metals such as aluminum and aluminum alloys. The tree profile facilitates work in complex cavities and gradual surfaces, while the aluminum‑cut design helps reduce material adhesion, improving machining smoothness and surface finish.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SG-5M AL | 12.7 | 25 | 6 | 70 | Silver braze | Aluminum |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
The tool performs reliably during continuous operation, balancing efficiency with detail‑handling capability. It is suitable for deburring, chamfering, and surface finishing on workpieces such as aluminum molds, heat‑dissipation parts, and electronic housings.
Compatible with common electric and pneumatic tools, it is easy to operate and maintain. Widely used in aluminum rough machining, mold edge finishing, weld‑seam processing, and routine maintenance, this is a specialized rotary burr designed for complex‑contour machining of soft metals.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
