SH-5M Flame Shape Double Cut Carbide Burr - H12.73206 For Curved Surface Blending Work
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SH-5M DC |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-25USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model: | SH-5M DC | Cut Dia: | 12.7mm |
|---|---|---|---|
| Cut Length: | 32mm | Shank: | 6mm |
| Overall: | 77mm | Cut: | DC |
| Coating: | No | Material: | Tungsten Carbide |
| Grade: | YG8 | Type: | Silver Braze |
| Workpiece: | Steel, Cast Iron | ||
| Highlight: | double cut tungsten carbide burrs,steel tungsten carbide burrs |
||
Product Description

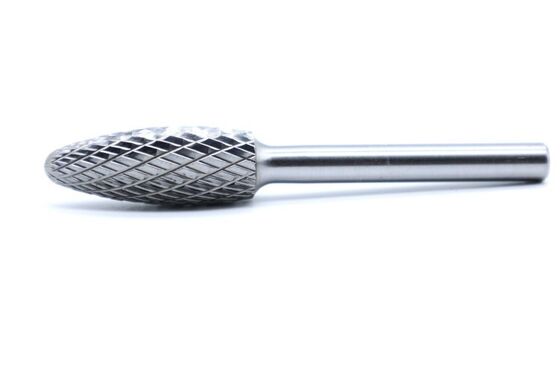

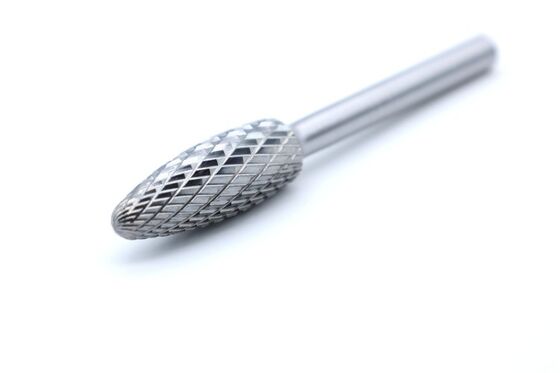

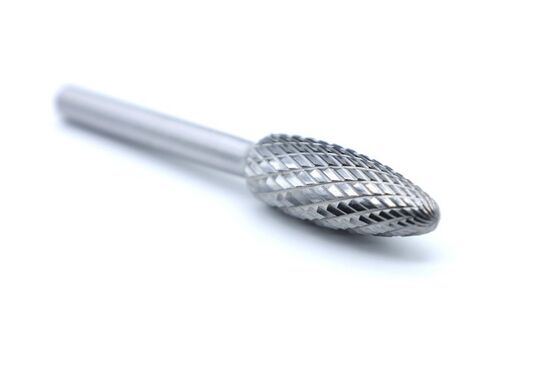

SH-5M Flame Shape Double Cut Carbide Burr - H12.73206 For Curved Surface Blending Work
The SH-5M carbide rotary burr features a flame‑shaped contour and a double‑cut design, making it suitable for metal processing tasks involving complex curves, gradual transitions, and streamlined contours. The flame‑shaped head allows smooth contact with multi‑angle surfaces, enabling natural blending cuts in concave and convex areas while reducing visible step marks.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SH-5M DC | 12.7 | 32 | 6 | 77 | Silver braze | Double |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
The double‑cut structure provides a balance of cutting efficiency and surface smoothness, making it suitable for contour finishing, deburring, and surface smoothing on materials such as stainless steel, tool steel, and aluminum alloys. Entirely made from wear‑resistant carbide, the tool maintains consistent cutting performance and long service life during continuous operation.
Compatible with common electric and pneumatic tools, it is easy to operate and maintain. Widely used in industrial‑design model shaping, artistic metalwork, streamlined mold‑cavity finishing, and weld‑seam blending, this is a distinctive rotary burr that combines shape adaptability with machining efficiency.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
