SM-5ML6 Long Shank Taper Double Cut Rotary Burr - M12.72206 for Deep Hole and Slope Work
| Place of Origin | CHINA |
|---|---|
| Brand Name | CABURTECH |
| Certification | ISO9001-2008 |
| Model Number | SM-5ML6 DC |
| Minimum Order Quantity | 100PCS/MODEL |
| Price | 1-20USD |
| Packaging Details | Standard Export Carton |
| Delivery Time | 15-30DAYS |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 60000-70000PCS/MONTH |
Product Details
| Model | SM-5ML6 DC | Cut Dia | 12.7mm |
|---|---|---|---|
| Cut Length | 22mm | Shank | 6mm |
| Overall | 172mm | Cut | DC |
| Coating | No | Material | Tungsten Carbide |
| Grade | YG8 | Type | Silver Braze |
| Workpiece | Steel, Cast Iron | ||
| Highlight | Double Cut Carbide Rotary Burr,172mm Overall Length Long Shank Burr,Deep Hole Work Tungsten Carbide Burr |
||
Product Description

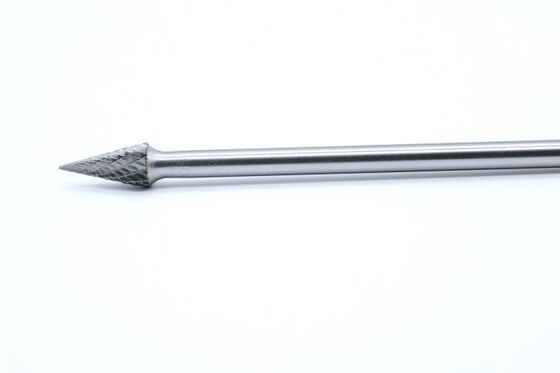

SM-5ML6 Long Shank Taper Double Cut Rotary Burr - M12.72206 for Deep Hole and Slope Work
The SM-5ML6 carbide rotary burr features a tapered design with a double‑cut structure and a 150mm extended shank, suitable for metalworking in deep holes, slopes, and areas that are difficult to reach with standard tools. The extended shank provides greater flexibility, while the tapered shape makes it easy to handle chamfers, grooves, and gradual surfaces.
| Technical Parameters | ||||||
| Model | Cut dia (D1) | Cut length (D2) | Shank (L1) | Overall (L2) | Type | Cut |
| SM-5ML6 DC | 12.7 | 22 | 6 | 172 | Silver braze | Double |
| Care Selections-carbide grades | Cobalt(%) | Hardness(HRA) | T.R.S(N/mm2) | |
| Carbide Grades | YG7 | 7 | 90.5 | 3000 |
| YG8 | 8 | 89.5 | 3400 | |
| YG6X | 6 | 91.7 | 3400 | |
| YG10X | 10 | 90-91 | 3000 | |
The double‑cut structure balances cutting efficiency with surface smoothness during processing, making it suitable for weld cleaning, surface finishing, and general shaping of common metals. Made from wear‑resistant carbide, the tool maintains stable performance during continuous use.
Compatible with standard electric and pneumatic tools, it is easy to operate and maintain. Widely used in deep‑cavity slope machining, pipe end finishing, internal structure processing, and weld cleaning in hard‑to‑reach areas, this is a practical long‑shank rotary burr tool.
Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.
FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
